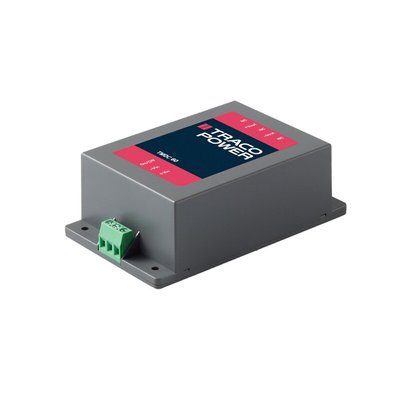

TMDC 60-2415, TRACOPOWER TMDC 60 DC-DC Converter, 24V dc/ 2.5A Output, 9 → 36 V dc Input, 60W, Chassis Mount, +85°C Max Temp, Преобразователь

Traco 60W, Single Output, Regulated, Isolated DC-DC Converter - TMDC 60 Series

The Traco Power, encapsulated DC-DC converter TMDC 20, is a range of high performance modules. These isolated DC-DC converters have a wide 4:1 input voltage range and a tight output Voltage regulation. The TMDC 20 series needs a minimum load and offers a high efficiency also at low load conditions. The output voltage of these DC-DC converters is adjustable by external resistor. The TMDC 20 Series also features remote On/Off and power good LED indicator, which makes this unit a practical and reliable DC source for any application. The EMC immunity of these DC-DC converters is aligned for industrial applications.

Fully encapsulated low profile plastic case
Ultra wide 4:1 input voltage range
Operating temperature range –40C to +65C
Reinforced I/O isolation 2500Vdc
Excellent efficiency up to 92%
Input filter to meet EN 55022, class A
Optional DIN-Rail mount adapter
No minimum load required
Input polarity protection
Power good LED indicator
Output voltage adjustable
Remote On/Off

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

CB, UL/cUL

Traco Power DC-DC Converter, 91% Efficiency, Internal Pi-Type Input Filter - TMDC 60 Series - TMDC 60-2415

Looking for a small but mighty DC-DC converter? This Traco Power product fits the bill. It delivers up to 60W of power from a compact package measuring just 112 (L) x 67.8 (W) x 38mm (D). As it runs at 91% efficiency, you can be sure energy isn't being wasted. The unit balances input voltages between 9 and 36V to deliver a stable and noiseless 24V output that's just right for devices like relays. As an added bonus, it puts an isolation barrier of up to 2.5kV between the supply and the output, preventing hazards caused by rogue currents.

Features & Benefits

• Modular design means you can mount it on a chassis or DIN rail, making it a flexible choice
• Cools by natural convection so there's no need for a heatsink
• Plastic housing resists the knocks and scratches you get in harsh environments

Applications

• Factory automation
• Machine building
• Marine engineering

How do I monitor this converter's operating status?

This component has an LED indicator that lets you see at a glance when it's powered up.
