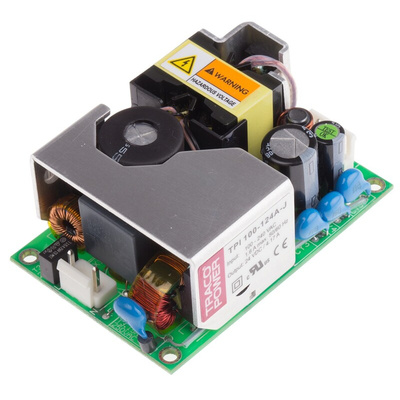

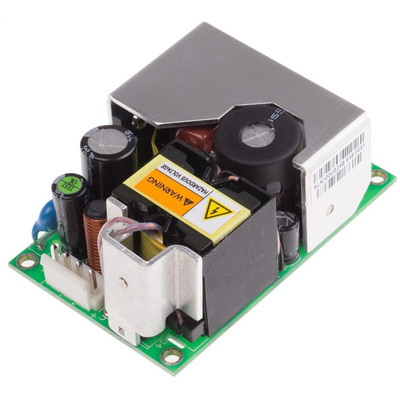

TRACOPOWER Switching Power Supply, TPI 100-124A-J, 24V dc, 4.17A, 100W, 1 Output, 120 → 370 V dc, 85 →, Источник питания

100W Universal Input, Adjustable Output, Switch Mode Power Supply, TPI 100 Series

The Traco Power TPI series of AC-DC power supplies feature reinforced double I/O isolation system, according to the latest industrial safety standards. This Power supply has an excellent efficiency up to 92% which allows high power density for the standard packaging format. The full load operating temperature range of this AC-DC power supply is -40°C to 50°C, going up to 75°C with 50% load derating. The TPI series of power supplies comes with active power factor correction and EMC characteristic dedicated for applications in industrial and domestic fields. The power supplies are built using industrial quality grade components and excellent thermal management, which guarantees their reliability. Ideal applications of the TPI series of Power supplies are in demanding industrial devices and space critical applications.

Highest power density encased 100W power supply in 2 x 3 package
I/O reinforced isolation 3000Vdc
Ready to meet ErP directive, < 0.3 W no load power consumption
Highest efficiency 91 to 92% across 10% – 100% load range
Active power factor correction (>95)
Protection class II prepared
Operating up to 5000m altitude
Adjustable output voltage

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

ERP, CE, CB, UL/cUL

Switch Mode - Traco TPI Series

TPI 100-124A-J Datasheet

Industrial Power Solutions Catalogue

Selection Guide
