S8VK-T12024, Omron S8VK-T Switch Mode DIN Rail Power Supply, 380 → 480 V ac, 450 → 600 V dc ac, dc Input, 24V dc dc, Блок питания

120W to 960W S8VK-T Series Power Supplies

Omron S8VK-T series of power supplies are a range of compact, space saving, safe, tough, reliable and simple to fit power supply. The hard wearing design and construction is excellent within the toughest of environments and temperatures providing stable operation over long periods. Minimal wiring, single handed click on DIN rail mounting all add to the wealth of international applications and features of the S8KV-T power supplies.

Features and Benefits.
•Power supply
•Compact, space saving
•Safe
•Tough, hard wearing
•Reliable, efficient
•Easy to fit DIN rail – click on
•Screw Front, side and DIN Rail
•Mounting Brackets required
•Storage temperature -40°C to 95°C
•Natural air cooling
•Green output indicators
•Overload and Overvoltage protection
•Series operation for 2 power supplies
•RoHS compliant
•Conforms to EN61204-3
•SEMI conforms to F47-0706
Model S8VK-T48024
480 W, 2 and 3 phase 380 V ac to 480 V ac input, 24 V output, 20 A output current, 24 A boost current, 91% efficiency, weight 1600 g.
Model S8VK-T12024
120 W, 2 and 3 phase 380 V ac to 480 V ac input, 24 V output, 5 A output current, 6 A boost current, 89% efficiency, weight 700 g.
Model S8VK-T24024
240 W, 2 and 3 phase 380 V ac to 480 V ac input, 24 V output, 10 A output current, 12 A boost current, 89% efficiency, weight 1000 g.
Model S8VK-T96024
960 W, 3 phase 380 V ac to 480 V ac input, 24 V output, 40 A output current, 48 A boost current, 92% efficiency, weight 2700 g.
960 W, 2 phase 380 V ac to 480 V ac input, 24 V output, 32 A output current, weight 2700 g.
Safety and Storage.
Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.
Storage temperature -25°C to 65°C.
Operating temperature -40°C to 70°C.
Power supply life expectancy 10 years.

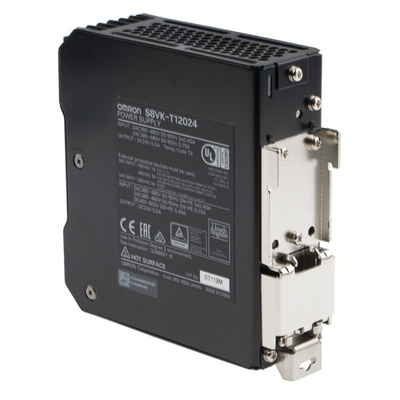

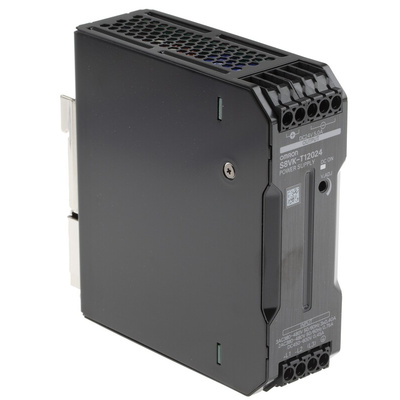

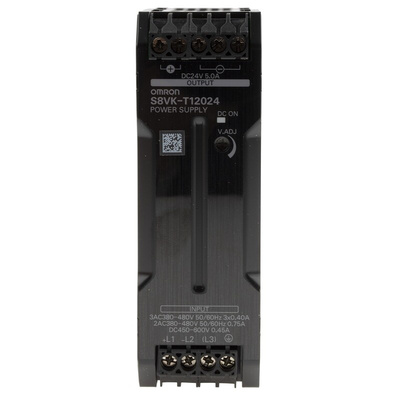

OMRON DIN Rail Power Supply, 120% Power Boost, IP20 Rating - S8VK-T Series - S8VK-T12024

Keen to find a compact but powerful PSU for use in a harsh setting? Choose this DIN rail power supply from OMRON. The three-phase unit offers a 120W power rating in a small 125 (H) x 40 (W) x 113mm (D) package, making it a practical pick for charging battery-supplied equipment. For versatility, the device accepts inputs across a broad range from 320 to 576V AC and 450 to 810V DC. It steps these down to a carefully controlled output of 24V DC. Thanks to a 120% power boost feature, this is a handy option for tricky start-ups of load-drawing kits like motors and pumps.

Features & Benefits

• Output voltage is adjustable from 22.5 to 29.5V DC, so it's easy to tailor to your application
• Low ripple and noise of 160mV max means there's little risk from electromagnetic interference

Applications

• Industrial control
• Building automation
• Mechanical engineering

Can I use this PSU in harsh environments?

Yes, it handles a broad operating temperature range from -40°C to +70°C and resists shock and vibration. It also has an IP20 rating, indicating it's protected against dust and objects bigger than 12mm, so it's a safe bet for tough settings.
