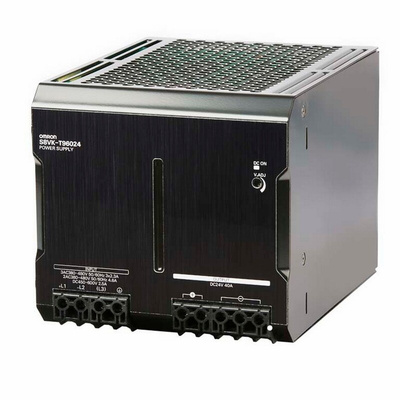

S8VKT96024, Omron S8VK-T Switch Mode DIN Rail Power Supply 380 → 480V ac Input Voltage, 24V dc Output Voltage, 40A Output, Блок питания

8432089
Номер производителя: S8VKT96024Производитель: Omron
Цена за шт.
130869.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

120W to 960W S8VK-T Series Power Supplies

Omron S8VK-T series of power supplies are a range of compact, space saving, safe, tough, reliable and simple to fit power supply. The hard wearing design and construction is excellent within the toughest of environments and temperatures providing stable operation over long periods. Minimal wiring, single handed click on DIN rail mounting all add to the wealth of international applications and features of the S8KV-T power supplies.

Features and Benefits.
•Power supply
•Compact, space saving
•Safe
•Tough, hard wearing
•Reliable, efficient
•Easy to fit DIN rail – click on
•Screw Front, side and DIN Rail
•Mounting Brackets required
•Storage temperature -40°C to 95°C
•Natural air cooling
•Green output indicators
•Overload and Overvoltage protection
•Series operation for 2 power supplies
•RoHS compliant
•Conforms to EN61204-3
•SEMI conforms to F47-0706
Model S8VK-T48024
480 W, 2 and 3 phase 380 V ac to 480 V ac input, 24 V output, 20 A output current, 24 A boost current, 91% efficiency, weight 1600 g.
Model S8VK-T12024
120 W, 2 and 3 phase 380 V ac to 480 V ac input, 24 V output, 5 A output current, 6 A boost current, 89% efficiency, weight 700 g.
Model S8VK-T24024
240 W, 2 and 3 phase 380 V ac to 480 V ac input, 24 V output, 10 A output current, 12 A boost current, 89% efficiency, weight 1000 g.
Model S8VK-T96024
960 W, 3 phase 380 V ac to 480 V ac input, 24 V output, 40 A output current, 48 A boost current, 92% efficiency, weight 2700 g.
960 W, 2 phase 380 V ac to 480 V ac input, 24 V output, 32 A output current, weight 2700 g.
Safety and Storage.
Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.
Storage temperature -25°C to 65°C.
Operating temperature -40°C to 70°C.
Power supply life expectancy 10 years.

Техническая спецификация
pdfDatasheet
Входное напряжение:
380 → 480В перем. тока
Входное напряжение переменного или постоянного тока:
Переменный ток, Постоянный ток
Высота:
125мм
Выходное напряжение переменного или постоянного тока:
Постоянный ток
Выходной ток:
40A
Глубина:
170мм
Количество выходов:
1
Максимальная температура:
+70°C
Минимальная температура:
-40°C
Мощность номинальная:
960Вт
Напряжение выходное:
24В пост. тока
Пульсации и шум:
90мВ Pk-Pk
Регулирование нагрузки:
1.5%
Серия:
S8VK-T
Среднее время безотказной работы:
260000ч
Тип:
Switch Mode
Тип монтажа:
Крепление на DIN рейку
Ширина:
125мм
Электрическая фаза:
2, 3
Эффективность:
92%
