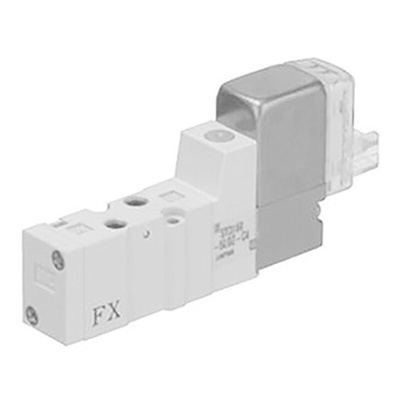

SYJ3143-5LOU-Q, SMC 4/2 Pneumatic Solenoid Valve - Solenoid SY Series 24V dc, Клапан

SMC Solenoid Valve

The SMC SY series 4/2 ports base mounted solenoid valve has a supply voltage of 24VDC. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.5W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance.
SMC SYJ & VF series
Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C.

Features and Benefits

Common exhaust type for main and pilot valve
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Supplied with lead wire of length 300mm without a connector
Surge voltage suppressor (Non-polar type)

Certifications

IP65 rated
