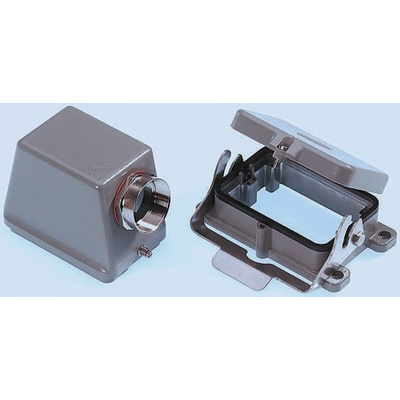

09300480317, HARTING Han B Heavy Duty Power Connector Housing, Bulkhead Mount

8443143
Номер производителя: 09300480317Производитель: HARTING
Цена за шт.
45627.00 руб. (С НДС) *
Количество 10+ 25+
Цена 43803.00 руб. 41976.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Hoods and Housing

Single locking lever to bulkhead and surface mounting housings
Cable gland available separately, see stock no. 313-6477 and range
Surface mounting housing also available with a thermoplastic protective cover

Note

Cable diameters stated are in the form of min./max.

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 10 - (Harting Size 48B)

These Range 10 hoods and housings are a wide bodied version of the Range 8 types and take two inserts of each size and are compatible with appropriate inserts from the Han D®, DD, E, ES, EE, Com, D AV, E AV and Modular series. The 'compatibility' table associated with item type 1 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range. Note: Two inserts or two 'frames' from the Modular series of Han 'Size' 24B are accommodated within these 48B housings.

Техническая спецификация
pdfDatasheet
pdfDimensional Drawing
Код размера производителя:
48B
Серийный номер:
930
Серия:
Han B
Степень защиты IP:
IP65, IP67
Тип:
Корпус разъема
Тип монтажа:
Bulkhead Mount
