19300101290, HARTING Han B Heavy Duty Power Connector Housing, M20 Thread

Hoods and Housings

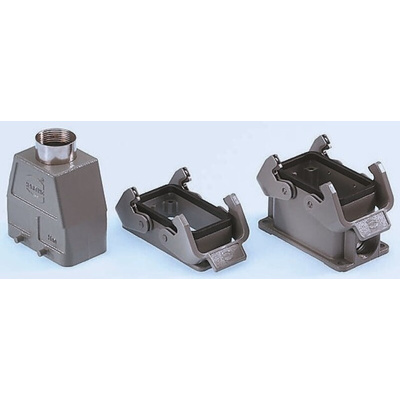

Metal bodied, with options of one or two locking levers on the hoods, and bulkhead or surface mounting housings

Note

Only the Housing stock no. 114-7964 can be used with the Han E AV series.

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 6 - (Harting Size 10B)

These hoods and housings are compatible with appropriate inserts from the Han DD®, EE, E, ES, EAV, Com and modular series. The 'compatibility' table associated with item types 1 and 2 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Datasheet

Dimensional Drawing
