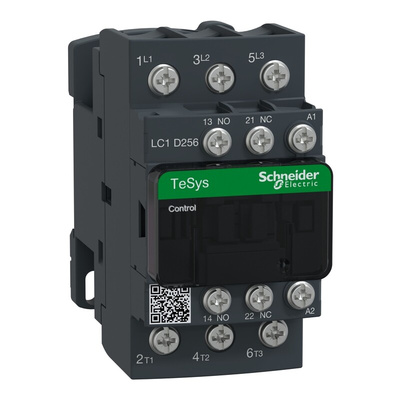

LC1D256G7, Schneider Electric LC1D Series Contactor, 120 V ac Coil, 3-Pole, 40 A, 15 kW, 3NO, 300 V dc, 690 V ac, Контактор

Schneider Electric Contactor, Lug Ring Terminal Type, 300V DC Contact Voltage Rating - TeSys Series - LC1D256G7

When it comes to switching high-power electrical loads, this contactor from Schneider Electric has the touch. It uses a low-voltage coil to close a much higher-voltage circuit of up to 690V AC. This makes it a safe choice for applications such as high-current motors where an overload could put people or equipment in danger. For added user protection, this dependable device has a finger-proof IP20 rating, so there are no shocks in store if you accidentally touch it while it's running. Compact dimensions of just 45 (W) x 92 (D) X 85mm (L) mean it fits comfortably even in confined spaces. Plus, for flexible setup, you can choose from DIN-rail or plate mounting options.

Features & Benefits

• Mechanical durability of 15 million cycles means you can expect a long service life
• Lug ring terminal method makes connection a breeze
• Fire resistant to +850°C to help prevent the spread of flames

Applications

• Power control
• Lighting installations
• Signalling equipment

Is this device suitable for use in demanding conditions?

Absolutely – a wide operating temperature range between -5°C and +60°C means the contactor performs at its best even in challenging settings.

Datasheet

TeSys D Green Range Guide

Product Change Notice (PCN)

Instruction Sheet - LC1 / LC2 D115 D150

Product Environmental Profile
