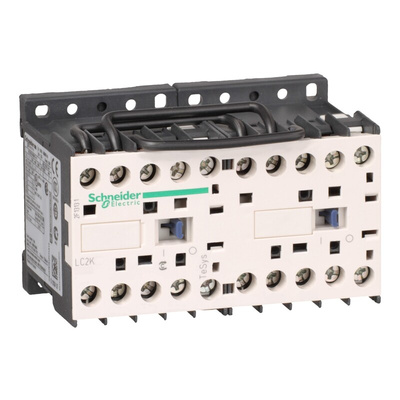

LC2K0901F72, Schneider Electric LC2K Series Contactor, 110 V ac Coil, 3-Pole, 20 A, 4 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 690V AC Contact Voltage, Reversing Function - TeSys K Series - LC2K0901F72

Put the breaks on your motor with this reversing contactor from Schneider Electric's TeSys K range. It's just the device for changing the direction of a motor running at full tilt, as you can safely decelerate its speed. A formidable power capacity of 4kW combined with miniature dimensions of 58 (H) x 90 (W) x 57mm (D) mean the unit really packs a punch. To lighten your workload, it comes pre-assembled with a reversing power busbar and there's a bidirectional peak-limiting diode suppressor conveniently built into the unit.

• IP20 rating means it's finger-safe and protected against objects larger than 12mm
• Flame-retardant, so it won't contribute to the spread of flames in the event of a fire
• Mechanical durability of up to five million cycles for an extended service life

Applications

• Lighting and heating systems
• Food and beverage industries
• Pumping equipment
• Wastewater management

The Schneider Electric LC2K0901F72 is a LC2K series 3 pole TeSys K reversing contactor used for motor control.

How long does this contactor take to react to a switching signal?

Poles description 3P
Pole contact composition 3 no
Rated operational current 9 A
Control circuit voltage 110 V AC

This contactor has an operating time of 10 to 20ms, meaninh it reacts almost instantly to a switching signal.

Datasheet

Catalogue - Innovative And Connected Solutions For Motor Starters

Instruction Sheet - LC2K0901F72

Product Environmental Profile
