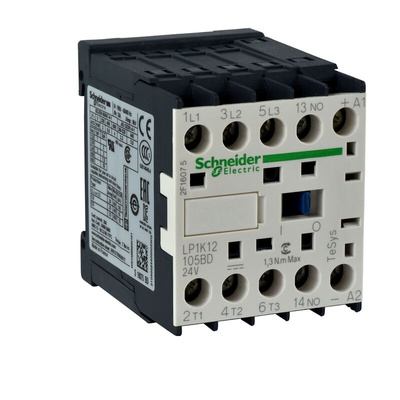

LP1K06015BD, Schneider Electric LP1K Series Contactor, 24 V dc Coil, 3-Pole, 6 A, 3 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 110A Rated Breaking Capacity, 1NC Auxiliary Contact - TeSys K Series - LP1K06015BD

For full range control of your squirrel cage motor, pick this contactor from Schneider Electric. It quickly makes or breaks the power supply link to your electrical load. This takes the strain off industrial motors that need to be switched repeatedly and cuts the risk of arcing caused by substantial inrushes. Thanks to its thermoplastic housing, this unit's insulated against electrical hazards, so you won't receive any unpleasant shocks when handling it. What's more, its terminals are located out of reach of your fingers, making sure you can't touch live parts and boosting safety.

Features & Benefits

• Power rating of 3kW for use in medium-duty applications
• Comes with slots for fuse installation to provide additional short-circuit protection
• 8kV rated impulse withstand voltage means that it can handle sudden power spikes without experiencing damage
• Contact voltage rating of 690V AC for use in low-voltage systems

Applications

• Lifts and escalators
• HVAC systems
• High-pressure compressors

Is this contactor flameproof?

No, this unit isn't flameproof. It does deliver excellent resistance to fire, though, as it stops burning in 30 seconds or less in an outbreak, stopping the spread of flames.
