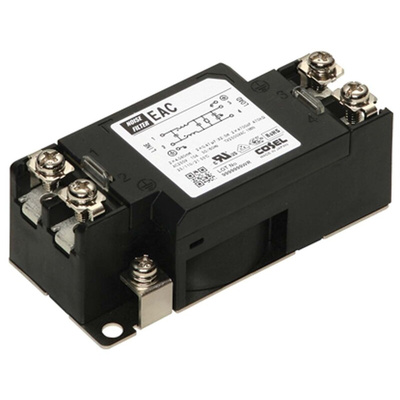

EAC-06-472, Cosel, EAC 6A 250 V ac/dc 150 kHz → 1MHz, Panel Mount RFI Filter, Screw, Single Phase, Фильтр

Cosel – EAC Series

The EAC series is a single phase noise filter designed for applications with a high-attenuation type of common mode noise from 150kHz to 1MHz. They come in a small packaging and have a selectable leakage current. Maintenance and instillation time is reduced as they feature quick and easy push-down terminal. Just connect the wires, push down and tighten the screws with a screwdriver.

Features:
Small size
High attenuation type of common mode noise from 150kHz to 1MHz
Single Phase 250 VAC
Selectable leakage current
DIN rail installation type (Optional)

Standards

UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC

Noise Filter - Cosel

Datasheet
