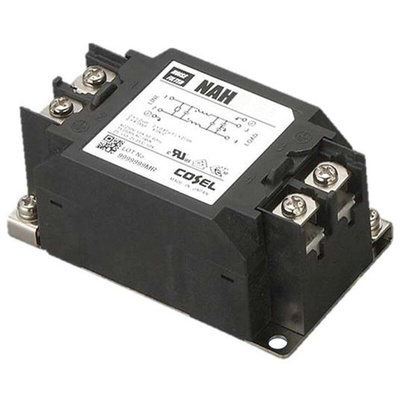

NAH-10-472, Cosel, NAH 10A 250 V ac/dc 10 kHz → 1MHz, Panel Mount RFI Filter, Screw, Single Phase, Фильтр

Cosel – NAH Series

The NAH series is a single phase noise filter designed for applications with an ultra-high attenuation type of common mode noise from 10kHz to 1MHz. They are suitable for many possible applications and feature easy connect push down style terminal blocks and selectable leakage current.

Features:
Ultra high-attenuation type of common mode noise from 10kHz to 1MHz
Single Phase 250 VAC
Selectable leakage current
Quick and easy push-down terminal - Just connect the wires, push down and tighten the screws with a screwdriver
DIN rail installation type (Optional)

Standards

UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC

Noise Filter - Cosel

Datasheet
