RS PRO Handheld Stroboscope, 12500rpm Max, ±0.01 % Accuracy, 9μs Sample Time, Стробоскоп

RS Pro Rolux Xenon Stroboscope

This professional handheld stroboscope benefits from its highly compact design and uses xenon technology to create extremely bright flashes making it an excellent choice for use in poorly accessible or particularly sensitive areas. The Rolux is ideal for proximity rotational speed measurement of plants and machinery, as well as for observing moving parts in operation and can also be used to observe fan blade deformation, the position of a toothed belt under load or separation of substances in a centrifuge.

Feartures and Benefits

• Xenon technology
• 1200 Lux
• Flash duration less than 9μs
• More than 2 hours continous use time with battery
• Lithium-Ion battery technology
• Continous use possible with power supply unit
• Measuring range from 30 to 12,500 flashes per minute (fpm)
• Longevity of Xenon lamp more than 200.000.000 flashes (@ 6.000 fpm)
• Dynamic rotary encoder
• LCD display

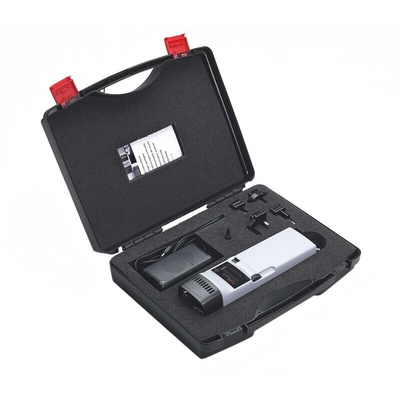

• Supplied in portable case with trigger plug, 4 country plugs, powersupply unit
• Operating manual in 10 languages
• Device-specific test certificate

RS PRO Handheld Stroboscope, Sample Time 9 μs, Maximum Speed 12500 rpm

This professional handheld stroboscope from the RS PRO range has a highly compact design and uses xenon technology to create extremely bright flashes. The high-quality instrument is ideal for measuring the rotational speed of plants and machinery. Use it to observe moving parts and to carry out inspections, for example of fan blade deformation or the position of a moving belt.

The stroboscope has a fixed flash duration that gives a crisp image even in sensitive areas with high ambient lighting or poor access. This also makes it particularly effective with small targets.

You can power the unit using the rechargeable lithium-ion battery pack for more than two hours of continuous portable use, or connect directly to the mains using the power supply unit (PSU) supplied. It comes in a carry case with trigger plug, four plug adapters and a device-specific test certificate.

Features and Benefits

• Dimensions of 240 mm (L) x 65 mm (W) x 40 mm (D)
• Weight of 415 g
• Xenon white-coloured flash
• Illumination level of 1200 Lux
• Maximum flash rate/speed of 12,500 FPM/RPM
• Minimum flash rate/speed of 30 FPM/RPM
• Sample time of 9 μs
• Accuracy of ±0.01%
• Operational temperature range of 0°C to +40°C
• Powered by a rechargeable lithium-ion battery pack
• Continuous use when on PSU (power supply unit)
• Supplied with trigger plug, four plug adapters, power supply unit and device-specific test certificate

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
