RS PRO Handheld Stroboscope, 300000rpm Max, ±0.02 % Accuracy, Стробоскоп

RS PRO Handheld Stroboscope, Maximum Speed 300000 rpm

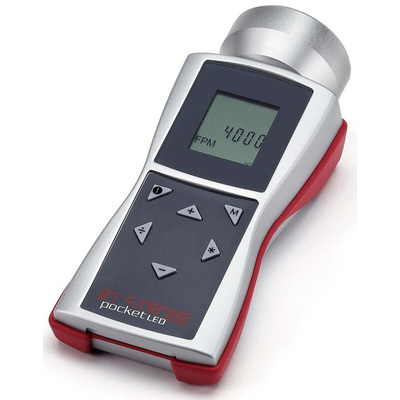

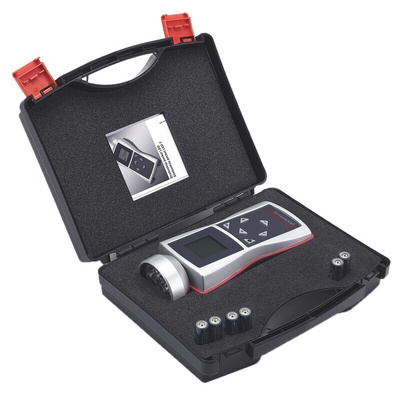

This handheld stroboscope is a professional, high-performance pocket instrument used to measure speeds of rotation. It's battery-powered and comes with a hard plastic carrying case, so it's a portable option for industrial measurements and inspections.

The LED light source on this stroboscope provides a high light intensity of up to 4800 lux. You can vary the flash rate between 30 and 300,000 flashes per minute (FPM) with an accuracy of ±0.02%. The device also lets you adjust the flash duration to ensure a crisp image and it has a time-delay function for greater versatility.

As part of the RS PRO range, this product is stringently tested for quality and safety. Each unit is factory-calibrated and comes with a calibration certificate. It has an IP65 rating, so it's sealed against water splashes and dust particles.

This handheld stroboscope is used for applications such as measuring the rotational speed of car timing pulleys and inspecting manufacturing machinery during maintenance.

Features and Benefits

• Length of 191 mm
• Width of 65 mm
• Height of 82 mm
• Weight of 400 g
• LED white flash colour
• Minimum flash rate of 30 FPM
• Maximum flash rate of 300,000 FPM
• Accuracy of ±0.02%
• Light emission of 4800 lux at 6000 FPM at 30 cm
• Minimum operating temperature of 0°C
• Maximum operating temperature of +45°C
• Powered by six AA batteries
• IP65 rating for protection from water splashes and dust
• Hard plastic carrying case included
