21554105055, Pfannenberg PY X-MA-05 Sounder Beacon 100dB, Red Xenon, 230 V ac

8463591
Номер производителя: 21554105055Производитель: Pfannenberg
Цена за шт.
78297.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

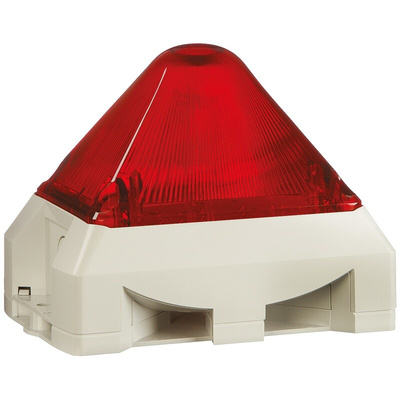

Pfannenberg PYRA Flashing Sounder Beacons, PY-X-MA-05

The PYRA PY-X-MA-05 is an electronic sounder beacon with a 100 dB output and a flashing xenon light effect. It has 8 alarm tones and a 5J flash, with a choice of four different flash rates. The PY X-MA-05 has a large signalling range and is safe and easy to install.

Rectangular PC/ABS blend housing with pyramid style PC lens
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - largest possible signalling range due to effective Xenon technology
Installation options with external lugs or internal holes
Choice of four different flash rates via DIP switch
Suitable for panel mounting
Electronic constant current regulation at 24 V ac/dc devices to avoid load fluctuations
Integrated inrush current limitation and undervoltage detection
Providing full synchronization on multi-flashing light systems
Light and sounder can be controlled separately
8 alarm tones, 100 dB
Visual covering distance of 11 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
5J flash
10 year warranty

Approvals

UL pending.

Техническая спецификация
pdfPY X-MA-05 230V AC Red RAL7035
pdfPY X-MA-05 230V AC Red RAL7035
pdfMachine Guarding and Safety Range Overview
Вид монтажа:
Base Mount
Децибел на 1 метр:
100дБ
Количество тонов:
8
Лампа - тип:
Ксеноновая
Максимальная температура:
+55°C
Материал корпуса:
Поликарбонат/АБС
Минимальная температура:
-40°C
Напряжение питания:
230 В перем. тока
Световые эффекты:
Вспышка
Серия:
PY X-MA-05
Тип оповещателя:
Электронное
Тип тока:
Переменный ток
Цвет корпуса:
Серый
Цвет линзы:
Красный
