21555814055, Pfannenberg PY X-MA-10 Series Amber Sounder Beacon, 24 V ac/dc, Base Mount, 100dB at 1 Metre

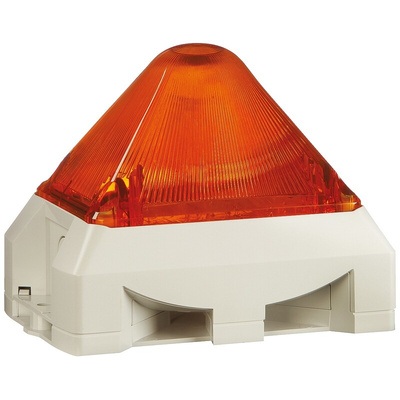

Pfannenberg PYRA Flashing Sounder Beacons, PY-X-MA-10

The PYRA PY-X-MA-10 is an electronic sounder beacon with a 100 dB output and a flashing xenon light effect. It has 8 alarm tones and a 10J flash, with a choice of four different flash rates. The PY X-MA-10 has a large signalling range and is safe and easy to install.

Pyramid style plastic housing
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - largest possible signalling range due to effective Xenon technology
Installation options with external lugs or internal holes
Choice of four different flash rates via DIP switch
Suitable for panel mounting
Electronic constant current regulation at 24 V ac/dc devices to avoid load fluctuations
Integrated inrush current limitation and undervoltage detection
Providing full synchronization on multi-flashing light systems
Light and sounder can be controlled separately
8 alarm tones, 100 dB
Visual covering distance of 17 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
10J flash
10 year warranty

Approvals

UL pending.

PY X-MA-10 24V AC/DC Amber RAL7035

PY X-MA-10 24V AC/DC Amber RAL7035
