RS PRO Push Button Switch, Latching, PCB, 12.2mm Cutout, 3PDT, Кнопочный переключатель

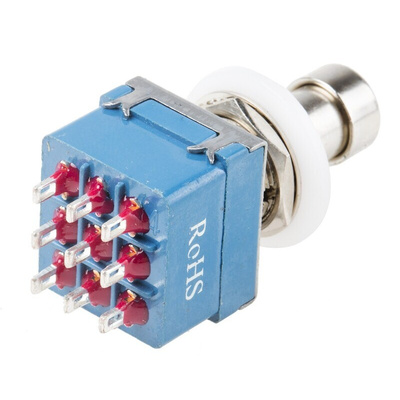

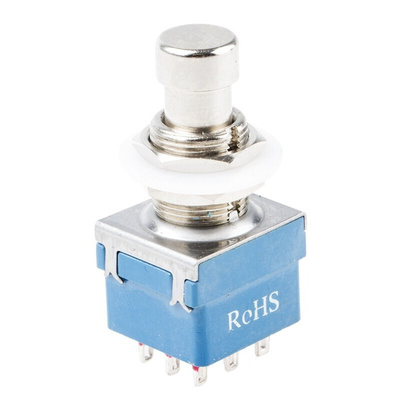

RS PRO 3P CO Latching Push Button Switch, 12.2 mm (Diameter), PCB

Reliably turn your equipment on and off with this latching push-button switch from RS PRO. It's designed for foot operation for ease of use, with a force of around 3 kg and a plunger cap actuator.
The switch comes with lug terminals for soldering to other components on your printed circuit board (PCB). This offers a secure electrical connection. They're made from a tin-plated copper alloy material, which is highly conductive as well as being resistant to oxidisation and wear. As a result, you'll get reliable performance over a long service life.
The switch has a broad operating temperature range of -20°C to +65°C and its base is made from a highly flame-retardant PA (polyamide) 66 material. These features make it suitable for safe operation in more demanding environments. Use it for sewing machines, medical and dental equipment and conveyor belts.

Features and Benefits

• Silver actuator colour
• Cylinder actuator shape
• Plunger cap actuator type
• Contact voltage rating of 250/125 V AC
• Contact voltage rating of 12 V, 24 V DC
• Contact configuration of 3 P changeover (CO)
• Contact current rating of 2 A, 4 A
• Panel cut-out diameter of 12.2 mm
• Solder-lug terminal type
• Tin-plated Copper contact material
• Not illuminated
• Printed circuit board (PCB) mounting type
• Latching switch operation
• Solder-lug terminal type
