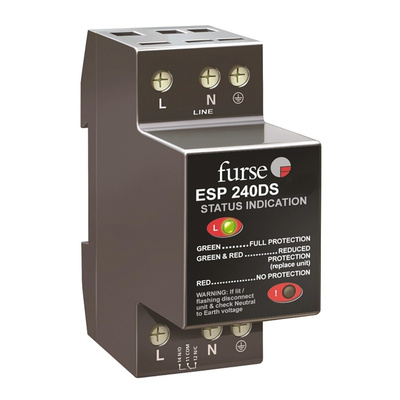

ESP 240DS-32A, WJ Furse DS Series 280 V Maximum Voltage Rating 32A Maximum Surge Current Mains Protector, DIN Rail Mounting

8472709
Номер производителя: ESP 240DS-32AПроизводитель: WJ Furse
Цена за шт.
77844.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 73875.00 руб. 69906.00 руб. 62898.00 руб. 56673.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

WJ Furse Power distribution systems enhanced surge protector - ESP-D/ DS Series

The D/ DS range offers a further enhanced series to the existing ESP range of mains protector range for specific systems, complementing the existing D1 Series.
Having a low let through voltage combined with the mains test Type 1, 2 and 3 to BS EN 61643, the D/ DS series is designed for use on low current single phase systems (up to 10A or 32A) to protect against transient over voltages on the mains supply, and offering an increased exposure level covering lighting protection zones (LPZ) 0 -3.
It also features a 3 way visual indication of protector status and advanced pre-failure warning, and remote indication facilities to a BMS via a volt-free contact. (DS Version)

Features and Benefits:

Combined type 1, 2 and 3 tested protector (to BS EN 61643)
Low let through voltages
Industry leading, enhanced protection to BS EN 62305
Compact DIN housing
3 way indication facility of protector status and advanced pre-failure warning
Remote indication facility (DS Version)
Protector’s offer repeated protection against transient over voltages

Applications:

The D/ DS range is for low current mains power supply applications, e.g. CCTV cameras, alarm panels, industrial battery chargers and telemetry equipment

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning and can reach up to 6000V, with current surges of over 3000A. The maximum size of the voltage and current surges depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.

Техническая спецификация
pdfESP In-Line Mains Protectors
pdf13648 T&B FURSE A4 6pp INLINE MAINS BROCHURE
pdfControl Cabinet Solutions
pdfABB IET Wiring Regulations BS 7671 18TH Edition
Высота:
90мм
Глубина:
75мм
Длина:
36мм
Максимально допустимое напряжение:
280 В
Максимальный ток перенапряжения:
32A
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
Размеры:
36 x 75 x 90мм
Серия:
DS
Тип монтажа:
DIN Rail
Тип супрессора:
Mains Protector
