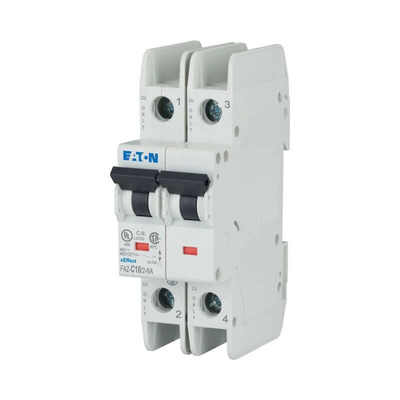

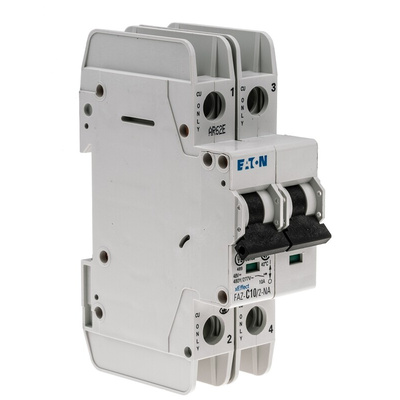

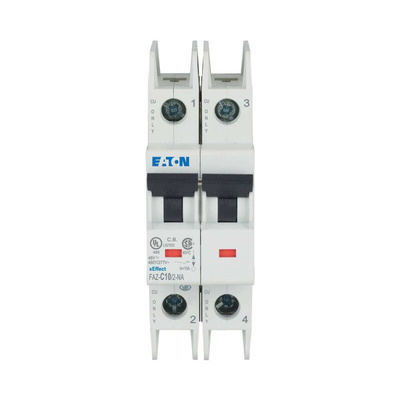

102167 FAZ-C10/2-NA, Eaton xEffect MCB, 2P, 10A Curve C, 240 → 415V AC, 60V DC, 10 kA Breaking Capacity

Eaton MCB, Instantaneous Breaking Type, 3.6W Maximum Heat Loss - FAZ Series - 102167 FAZ-C10/2-NA

Stop pesky power issues in their tracks with this MCB from Eaton. Its type-C tripping characteristic indicates that it breaks when it receives loads five to ten times its 10A rating to pull the plug on damaging overcurrent. As the breaker trips instantaneously, it cuts off power faults before they can cause damage. You don't need to worry about electrical spikes, as it shuts down surges up to 10kA. Monitoring linked circuits is no trouble thanks to the two-pole format. MCBs like this protect workshop equipment and automotive manufacturing systems.

Features & Benefits

• Slim dimensions of 35.4 (W) x 75.5 (H) x 105mm (D) to slot easily into a busy setup
• Front-mounted toggles for quick resetting
• Labelled terminals help you line up wiring easily
• Service life of at least 20,000 electrical operations to reliably stop faults over a long lifespan
• Trip indicators clearly show circuit status for speedy spot-checks

Do I need any special tools to install this unit?

No, this MCB clips onto a DIN rail and has screw terminals, so there's no need to break out special tools during installation.

Note

Eaton formerly known as Moeller
