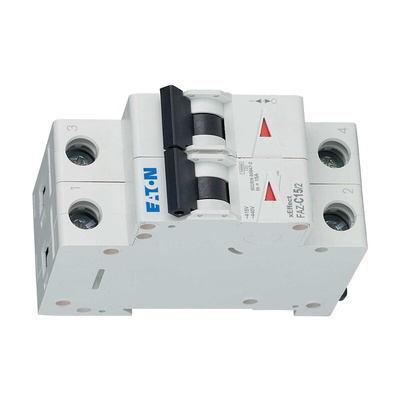

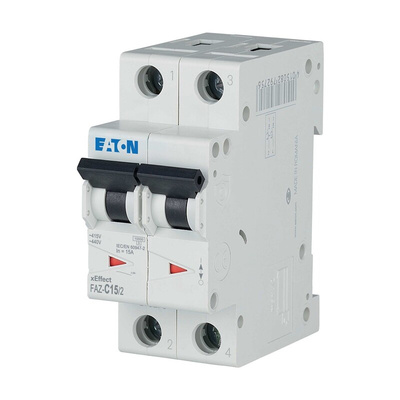

278759 FAZ-C15/2, Eaton xEffect MCB, 2P, 15A Curve C, 240 → 415V AC, 415V DC, 10 kA Breaking Capacity

Eaton MCB, 4kV Impulse Withstand Voltage, DIN Rail Mounting - FAZ Series - 278759 FAZ-C15/2

On the hunt for a comprehensive circuit-breaking solution for commercial and industrial contexts? Track down this all-rounder MCB from Eaton. It combines thermal and electromagnetic mechanisms to provide both overload and short-circuit protections, keeping you and your equipment safe. With type-C breaking and dual poles, it de-energises up to two circuits whenever they receive between five and ten times the 15A rated load. This makes it your go-to for heavy-duty applications involving high loads, such as starting up fluorescent lights. The product's switching capacity is in line with European (IEC/EN 60947-2 and IEC/EN 60898-1) and American (UL 1077) standards, so you can trust that it reliably resists currents up to 10kA without risk of damage to the device.

• 3-position DIN-rail clip gives you flexible mounting onto a DIN rail bus bar system
• Guided terminals help you connect securely to avoid wiring mishaps
• Red and green contact indicators for at-a-glance status checks
• IP20 rating indicates it's safe to handle without risk of shocks

What does this product's high selectivity mean?

This product's high selectivity means it takes a belt-and-braces approach by including an additional built-in fuse, as well as thermal or electromagnetic mechanisms. All three are on hand to trip your circuit if necessary.

Note

Eaton formerly known as Moeller

Datasheet

Brochure - Industrial Miniature Circuit Breakers

Catalogue - Circuit Protection

Instruction Sheet - FAZ Series
