102171 FAZ-C20/2-NA, Eaton xEffect MCB, 2P, 20A Curve C, 240 → 415V AC, 60V DC, 10 kA Breaking Capacity

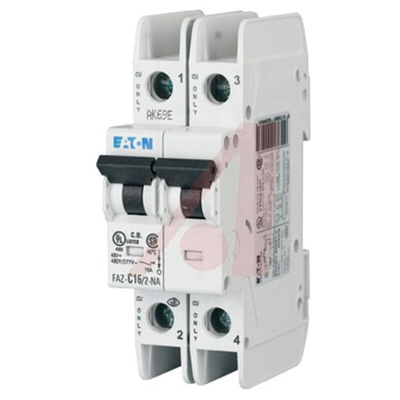

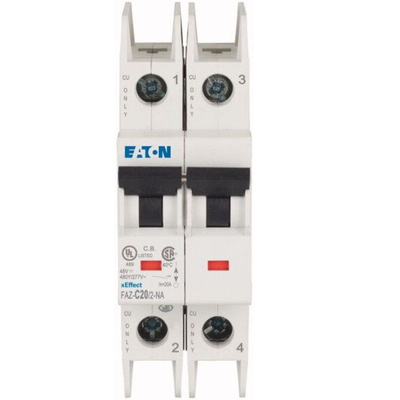

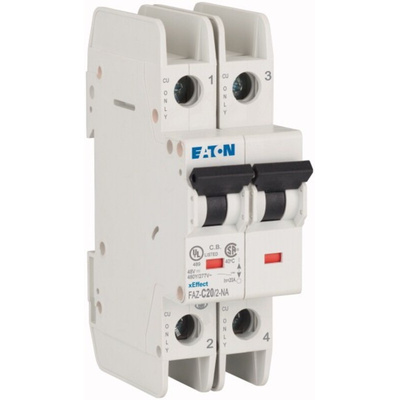

Eaton MCB, Type C Tripping, 2 Poles - FAZ Series - 102171 FAZ-C20/2-NA

Safeguard your equipment against electrical overloads with this MCB from Eaton. It automatically cuts power to the attached circuit in the event of a surge, helping to prevent damage to sensitive electronic components. As it has type-C tripping characteristics, it trips at 5 to 10 times its current rating of 20A. This makes it suitable for use with high-power devices such as air conditioners and submersible pumps. A broad operating temperature range of -25°C to +75°C means this a good choice for use in harsh industrial environments.

Features & Benefits

• Red and green status indicator lights for ease of monitoring and troubleshooting
• Designed for DIN rail mounting, so installation is simple and doesn't need tools
• IP40 rating when installed means it's protected against tools and wires larger than 1mm in size
• Can be mounted in any position, to suit the needs of your setup
• Breaking capacity of 14kA for protection against powerful surges

How long will this MCB last?

This MCB has a long lifespan of more than 20,000 operations, so it won't need frequent replacement.

Note

Eaton formerly known as Moeller

Datasheet

Datasheet - 8473302

Instruction Sheet - Only For Faz.Rt

Line Drawing - 102171 FAZ-C20/2-NA
