278762 FAZ-C25/2, Eaton xEffect MCB, 2P, 25A Curve C, 240 → 415V AC, 60V DC, 10 kA Breaking Capacity

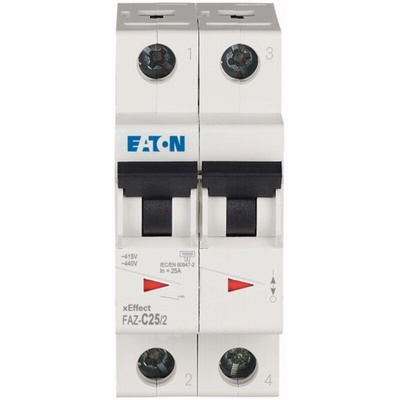

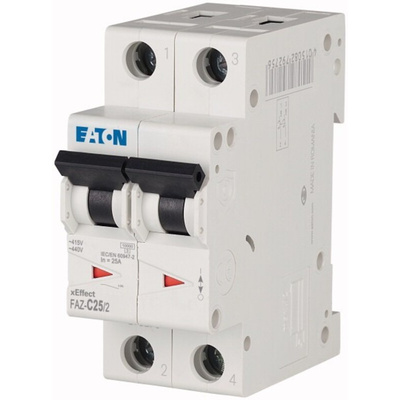

Eaton MCB, 2 Poles, 25A Current Rating - FAZ Series - 278762 FAZ-C25/2

For reliable protection against current overload, choose this 2-pole MCB from Eaton. It prevents damage to sensitive devices by shutting off power to the circuit in the event of an electrical surge. Thanks to its current rating of 25A, it's suitable for use with high-power applications such as branch circuit protection, external motors and refrigeration equipment. For ease of monitoring, red and green indicator lights provide visual confirmation of the contact position, so you can easily tell when the circuit has been broken.

Features & Benefits

• Designed for mounting on a DIN rail for easy installation
• Type-C tripping characteristics mean it trips at 5 to 10 times the rated current for protection against powerful surges
• IP40 rating when fitted indicates it's protected against wires and tools larger than 1mm in size
• Long lifespan of more than 10,000 operations means it won't need frequent replacement

What's the voltage rating of this MCB?

This MCB has a voltage rating of 240 to 415V AC, making it suitable for use in low-voltage to medium-voltage applications.

Note

Eaton formerly known as Moeller

Datasheet

Instruction Sheet - Circuit Breakers

Datasheet - 8473318

Line Drawing - 278762 FAZ-C25/2
