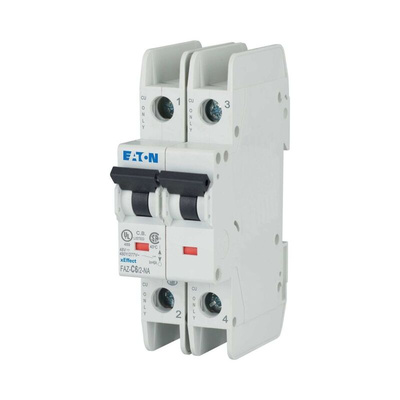

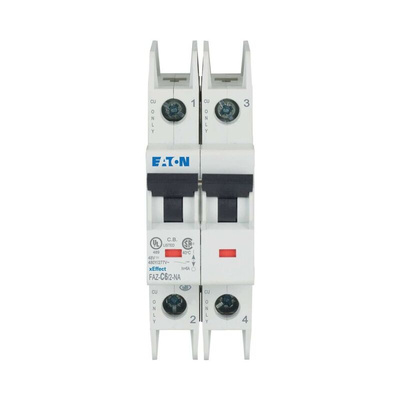

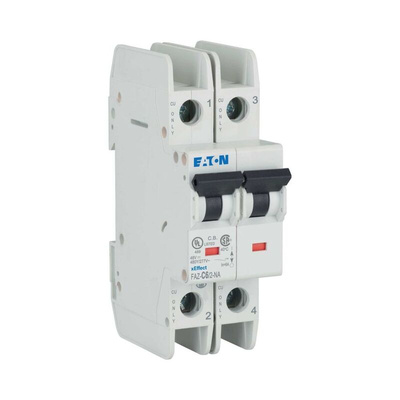

102164 FAZ-C6/2-NA, Eaton xEffect MCB, 2P, 6A Curve C, 240 → 415V AC, 60V DC, 10 kA Breaking Capacity

Eaton MCB, Type-C Tripping, 2 Poles - FAZ Series - 102164 FAZ-C6/2-NA

Put a roadblock in front of power surges with this Eaton MCB. With its thermal-magnetic mechanism, it trips in the event of abnormal conditions to protect downstream equipment. As it instantly breaks a connected circuit when faced with current at five and ten times its 6A rating, you can rest assured it provides quick overcurrent protection for applications with high inductive loads such as small motors. Thanks to a breaking capacity of 10kA, it stands its ground against large electrical spikes. You can use MCBs like this to protect power supplies, fluorescent lighting systems and packaging equipment.

Features & Benefits

• Screw terminals achieve a secure hold on conductors to withstand vibration
• Electrical lifespan of 20,000 operations, for long-lasting equipment protection
• Heat dissipation of just 2.3W minimises energy waste
• Handy toggle lever actuators for straightforward resetting when a fault has been cleared
• Works with AC and DC voltages for wide supply compatibility

Is this MCB protected against tampering?

Yes. This MCB's trip-free mechanism breaks a circuit without needing to move its actuator, so it keeps protecting equipment even if its toggle levers get stuck or the handle is forcibly held in the on position.

Note

Eaton formerly known as Moeller

Datasheet

Catalogue - Miniature Circuit Breakers

Datasheet - 102164 FAZ - C6/2 - NA

Instruction Sheet - 102164 FAZ - C6/2 - NA
