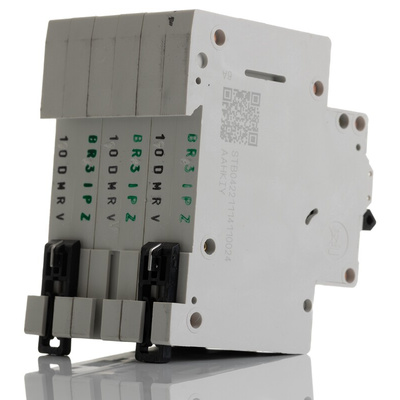

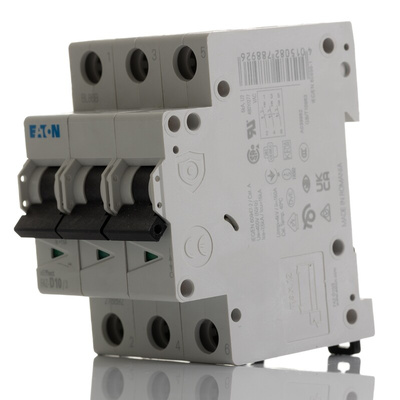

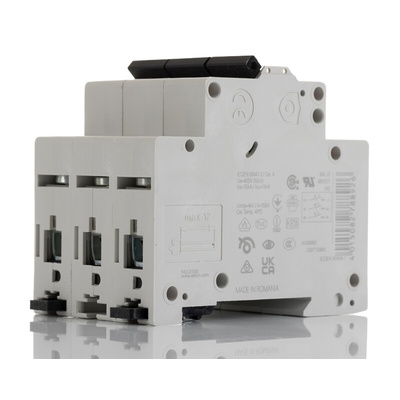

278892 FAZ-D10/3, Eaton xEffect MCB, 3P, 10A Curve D, 240 → 415V AC, 10 kA Breaking Capacity

Eaton MCB, 240 to 415V AC Voltage Rating, 70.5mm Built-In Depth - FAZ Series - 278892 FAZ-D10/3

To protect your kit from overload, overcurrent and short circuits, wire up this three-pole MCB from Eaton. It's a type-D breaker that interrupts attached circuits when it receives three to five times its rated current of 10A. The device can break currents of up to 10kA when operating at 415V AC or 15kA at 240V AC, so it's ideal for use with welding equipment, large motors and other heavy-duty equipment. It's mountable in any position to slot into your setup with the minimum of fuss.

Features & Benefits

• DIN-rail mounting, so you can set it up in a jiffy
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm
• Broad operating temperature range of -40°C to +75°C for safe use in harsh work areas

How long-lasting is this unit?

This MCB has a rated lifespan of more than 10,000 operations, so you can be sure it'll be with you for the long run.

Can this MCB withstand impulse voltages?

Yes. This MCB withstands impulse voltages of up to 4kV for additional electrical safety.

Note

Eaton formerly known as Moeller

Datasheet

Instruction Sheet - 239216 FAZ Series

Datasheet - 278892 FAZ-D10/3
