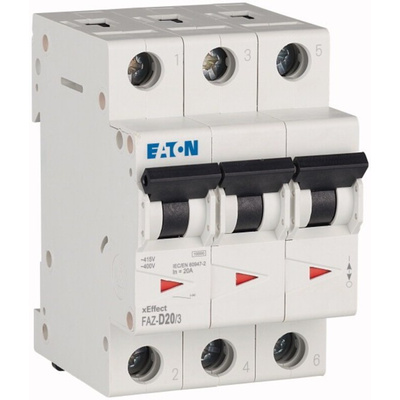

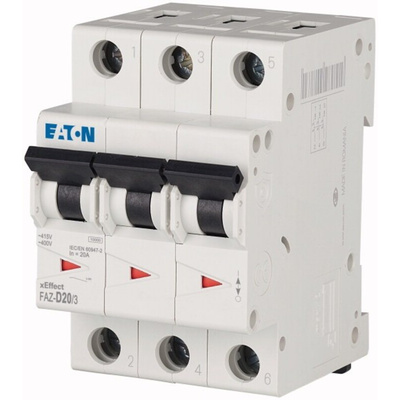

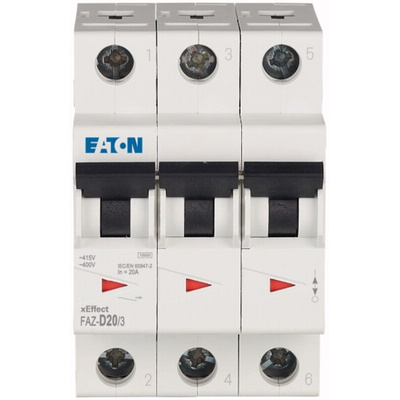

278897 FAZ-D20/3, Eaton xEffect MCB, 3P, 20A Curve D, 240 → 415V AC, 10 kA Breaking Capacity

Eaton MCB, Type D Tripping, DIN Rail Mount - FAZ Series - 278897 FAZ-D20/3

Need a safety solution to keep you and your equipment protected against overcurrent and short-circuit faults? Choose this MCB from Eaton. As a component with type D breaking characteristics, it tolerates very high inductive loads, so it's ideal for use in high-power industrial applications and with heavy-duty equipment such as motors and transformers. Thanks to a maximum breaking capacity of 10kA means you can trust this MCB to handle extreme surges to reliably reduce the risk of equipment failure or fire. A high magnetic trip point minimises the risk of nuisance tripping in load-drawing applications to help avoid downtime.

Features & Benefits

• Wide operating temperature range of -40°C to +75°C means it can withstand harsh environments
• Meets UL 1077, so offers effective supplementary protection for your circuits
• Complies with CSA C22.2 No. 235 as a safe high-voltage AC circuit breaker
• Trip-free design prevents the circuit from being defeated when the handle is held in the ON position

How do I mount this unit?

This MCB simply snaps into place on a standard 35mm DIN rail, so installation is quick and easy without the need for tools.

Note

Eaton formerly known as Moeller
