134938 DS7-342SX100N0-N, Eaton Soft Starter, Soft Start, 55 kW, 400 V ac, 3 Phase, IP20, Устройство плавного пуска

Eaton Soft Starters - DS7 Series

This range of softstarters have become increasingly established as an alternative to the star-delta starter. The DS7 is a fully integral part of xStart and all existing components can be used. Designed for normal applications that feature pumping and ventilation machines, fans and small conveyors alongside severs and standard applications. The DS7 is also available with SmartWire-DT connection to simplify wiring and enhance functionality as an automation solution.

Features & Benefits

• Option to be connected directly to the PKE device
• Low operating frequency (5 s, 3x Ie, 10 Starts)
• The built-in fan removes any limitations
• Can be used with existing standard Eaton Products
• Available from 1.5kW up to 110kW
• 24V DC and 230 - 460V AC voltage options available
• Din Rail mounting or screw fixing
• Option to mount side by side without any de-rating
• Compact in design

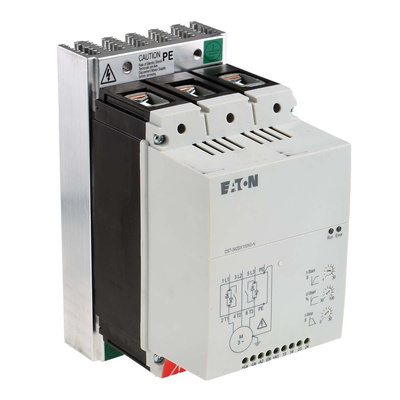

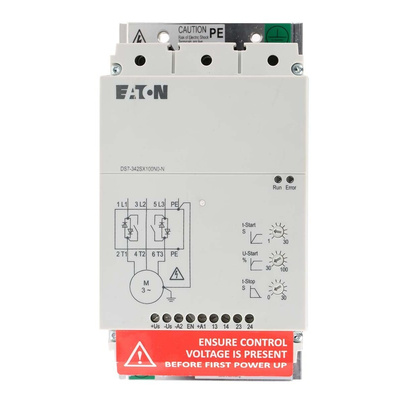

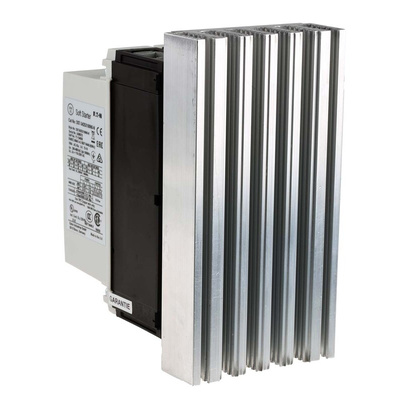

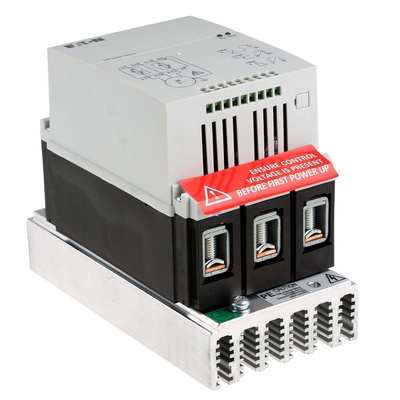

DS7-342SX100N0-N Soft Starter

• The main function of this device is to perform as a soft starter for three-phase loads
• The mains supply voltage is 400 - 480 V AC
• The shock resistance is 8 g/11 ms
• The average head dissipation at rated load cycle is 25W
• Ramp time acceleration is 1-30 s
• With internal bypass contacts
• The soft start is not a current limiting circuit breaker
• Forms part of the DS7 range

Note

Eaton formerly known as Moeller

DS7-342SX100N0-N Datasheet
