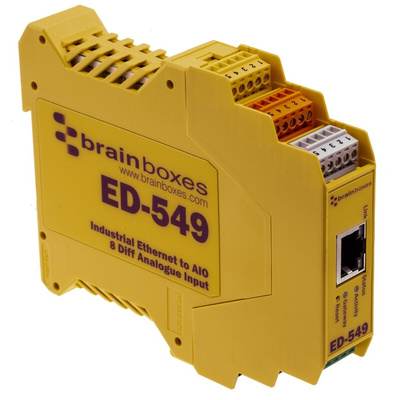

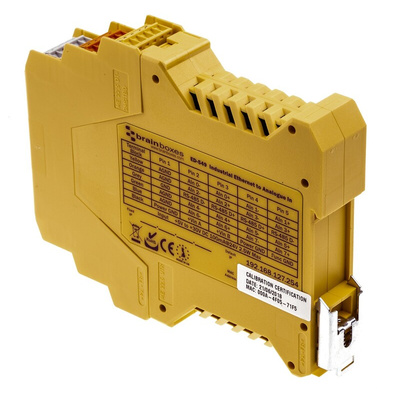

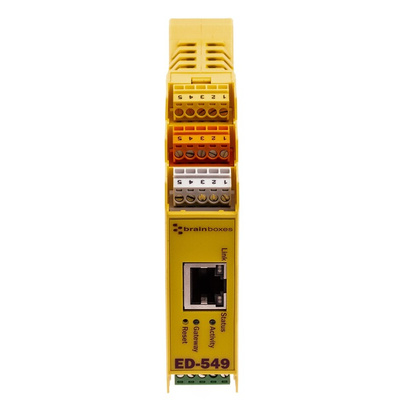

Brainboxes ED-549

Brainboxes Ethernet Switch

The Brainboxes Ethernet switch has 8 analogue inputs. It is suitable for high precision measurements of voltage and current. Most of the parameters in the real world are measured using sensors with analogue output sensors and this Brainboxes Ethernet switch takes these real-world signals and turns them into data on your network. Brainboxes switch supplies a suite of APIs and sample code to communicate with the device using Microsoft. NET framework Visual Basic, C#, C++, Java, JavaScript and PHP. This device can be configured and secured from a web browser and can be installed as a COM port on a Windows PC to give complete backwards compatibility, essential for a legacy application. Media converter is CE certified.

Features and Benefits

Individually configurable
Factory floor process control and automation
Integrated DIN rail mount
Monitor instantly from any web browser
Programmable gain amp allows full resolution measurements down to 75mV
Operating temperature ranges between -30°C and 80°C

Applications

Factory floor
Vehicles
Marine industry

Certifications

CE

Ethernet Converter ED-549 - Data Sheet
