106798 LS-S11S, Eaton Series Limit Switch, NO/NC, IP66, IP67, 415V ac Max, 230/240 V ac 6A Max

Eaton LS-Titan Series Limit Switches

The LS-Titan series from Eaton offers a range of high performance, reliable and durable limit switches. The switches have economical insulated plastic or rugged metal enclosures and modular, plug-in operating heads and bodies which make for a flexible and reliable switching solution.

Flexible, durable switches
Modular, plug-in system
Wide variety of economical plastic and rugged metal versions

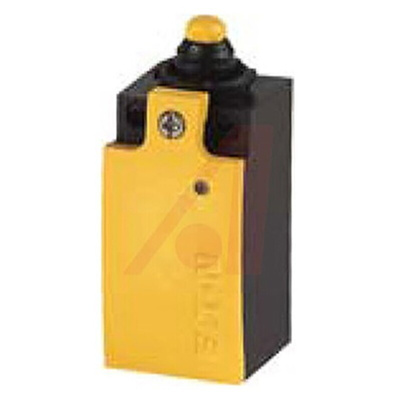

Eaton Snap-Action Limit Switch, 220V DC Maximum Voltage, NO/NC - LS-Titan Series - 106798 LS-S11S

Use this limit switch from Eaton to speed up the switching capabilities of your electrical machinery. It’s fitted with a snap-action plunger actuator, which rapidly connects its NC and NO contacts when triggered. This ensures that your device switches on and off rapidly for enhanced efficiency. The unit also has quick-break capabilities, so it's designed for rapid circuit breaking to minimise electrical arcing. You can easily install this device in systems with limited space thanks to its compact dimensions of 33.5 (length) x 31 (width) x 76.5mm (depth).

• Long mechanical lifespan of up to 8,000,000 operations for long-lasting performance
• Yellow exterior for ease of identification in a colour-coded setup
• Screw terminals for simple and secure installation
• Wide operating temperature range of -25°C to +70°C for use in harsh environments

Is this limit switch safe for use in damp or dusty environments?

Yes, this limit switch has an IP66 (ingress protection) and IP67 rating. This means it's dust-tight and protected against high-pressure water jets and submersion in 1m of water for up to 30 minutes.

Note

Eaton formerly known as Moeller
