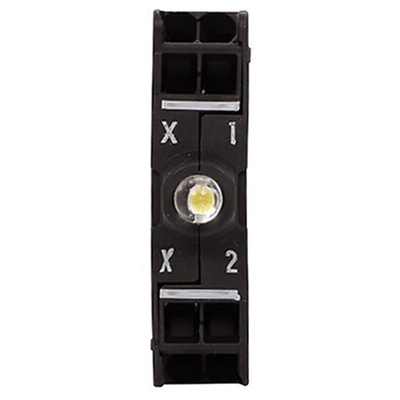

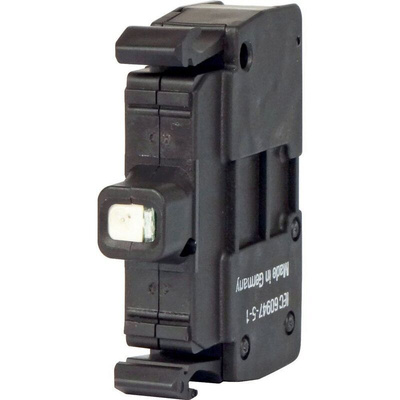

216570 M22-CLED-R, Eaton M22 Series Light Block, 12 → 30V ac/dc, Световой блок

Eaton Light Block, 6kV Rated Impulse Withstand Voltage, 0.26W Power Consumption - M22 Series - 216570 M22-CLED-R

Illuminate your push buttons for easy identification with this light block from Eaton. It serves as a simple visual indicator, turning on when the switch is pressed and off when it's released. The unit's LED element makes it an energy-efficient choice for your setup, as it only uses 0.26W of power during operation. Its distinctive red colour attracts the eye, so it works well to draw attention to critical elements of your machine. With terminals that accommodate solid and stranded wire sizes between 0.5 and 2.5mm², this block is a versatile piece of kit. Components like this are commonly found in the manufacturing industry.

Features & Benefits

• Safe to use in demanding conditions thanks to an operating temperature range between -25°C and +70°C
• Cage clamps make it easy to link wires to the unit, saving time and hassle
• Rated impulse withstand voltage of 6kV shows it handles high power spikes without flinching

Is this light block finger-safe?

Yes. The product's IP20 rating shows that it's finger-safe, as it's protected from objects larger than 12mm in size.

Note

Eaton formerly known as Moeller
