286336 M22-D4-S-X7, Eaton RMQ Titan M22 Series Black Momentary Push Button Head, 22mm Cutout, IP66

Eaton Push Button Head, 55m Diameter, Plastic Construction - RMQ Titan Series - 286336 M22-D4-S-X7

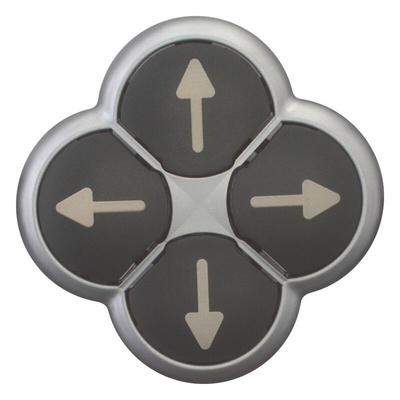

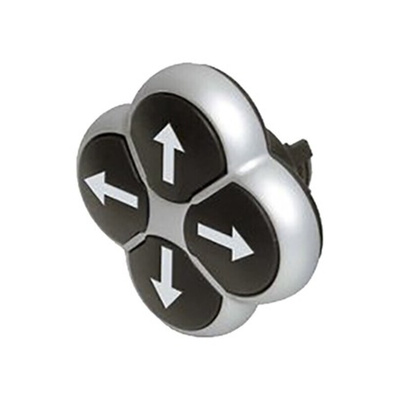

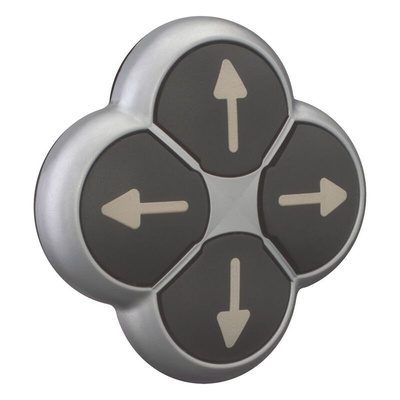

Take direct control of your equipment with this push button head from Eaton. It has four black buttons with up, down, left and right direction arrows on them, so is ideal for guiding and positioning machinery in settings like factories, engineering workshops and laboratories. The unit is made of plastic, meaning it's durable, chemical-resistant and can stand up to demanding industrial environments. To use it, simply combine it with a contact block from the RMQ Titan series (such as 810-3781)and install it into your control panel. Thanks to its standard 22mm cutout diameter, it's a breeze to set up.

Features & Benefits

• IP66 rating indicates protection against dust and high-pressure jets of water
• Titanium bezel is strong and rust-proof
• Operating temperature range between -25°C and +70°C makes it suitable for harsh conditions
• 55mm diameter doesn't take up much space on your panel
• 30g/11ms mechanical shock resistance means it handles high-vibration environments

What type of actuation does this button have?

It has momentary actuation, so each directional button will engage only while you're pressing it.

Note

Eaton formerly known as Moeller
