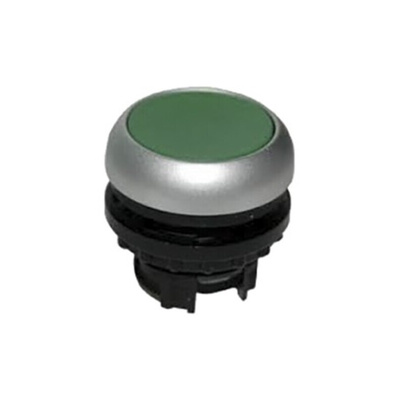

216596 M22-D-G, Eaton M22 Series Green Momentary Push Button Head, 22mm Cutout, IP67

Eaton Push Button Head, 29.7mm OD, 30g Shock Resistance - M22 Series - 216596 M22-D-G

Press ahead with work using this Eaton push button head. It comes as a complete unit ready for no-fuss installation in your switching system. The front ring is made from durable titanium to resist corrosion and wear, while the button itself is made from easy-to-identify green plastic. IP67 and IP69K ratings mean it's protected against high-pressure water jets, so it's a reliable option for use in places where washdowns take place. Thanks to an ambient temperature range between -25°C and +70°C, you can relax knowing it handles challenging conditions.

Features & Benefits

• Mechanical lifespan of over 5 million operations for long-lasting reliability
• Flat head protects against accidental presses
• Cutout diameter of 22.5mm for use on standard panels

What type of actuation does this product have?

This product is designed for momentary actuation applications. As momentary buttons must be continuously pressed to activate a process, they're the ideal choice for processes where safety is a priority, such as industrial machines or factory conveyors.

How many command positions does this push button have?

It has one command position, which makes it suited to simple on/off applications.

Note

Eaton formerly known as Moeller
