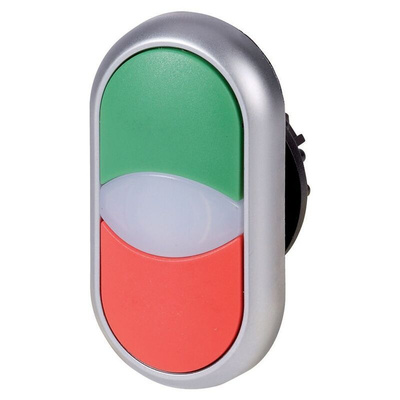

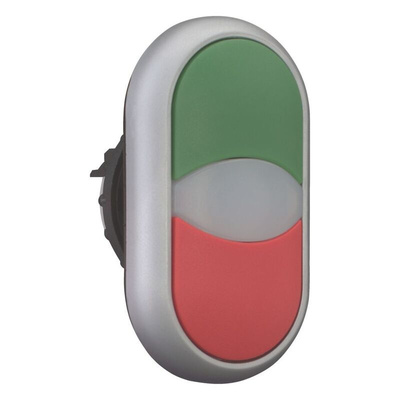

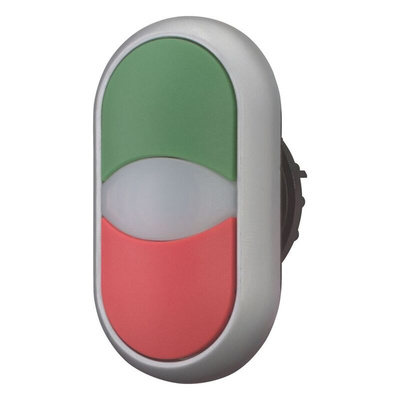

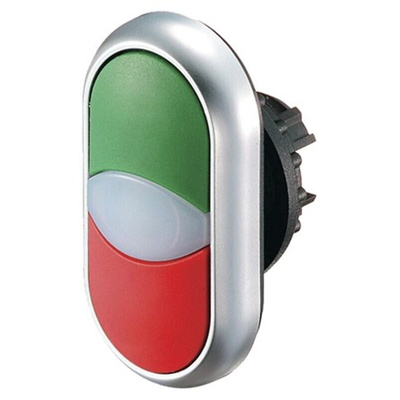

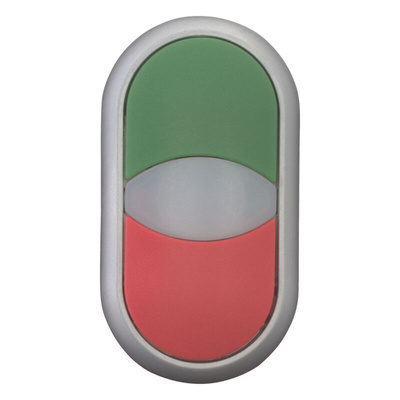

216698 M22-DDL-GR, Eaton M22 Series Green, Red Illuminated Momentary Push Button Head, 22mm Cutout, IP67

Eaton Push Button Head, Double-Actuator Type, Momentary Action - M22 Series - 216698 M22-DDL-GR

Use this push button head from Eaton to take charge of your industrial equipment. When connected to your circuit, it allows you to power up or de-energise an attached device just by pressing on its red or green actuator. Thanks to its operating temperature range between -25°C and +70°C, you can rest assured that this hardy device holds up in harsh work areas. That's why you'll find it on factory floors, control stations and automotive workshops.

Features & Benefits

• 15g net weight won't strain your setup
• Space-saving size of 30 (L) x 30 (W) x 55mm (H) lets you install it on compact mounting surfaces
• Highly reliable, as indicated by a rated service life of over 200,000 operations
• Suitable for illumination to ensure visibility in low-light areas

Is this product water-resistant?

Yes. This push button head has an IP66 rating, which means that it's dust-tight and resists water damage even when exposed to high-pressure jets from any direction.

Can this product cope with frequent usage?

Yes, it can. It's designed to handle up to 3,600 operations every hour, meaning it's suitable for systems that need constant switching.

Note

Eaton formerly known as Moeller
