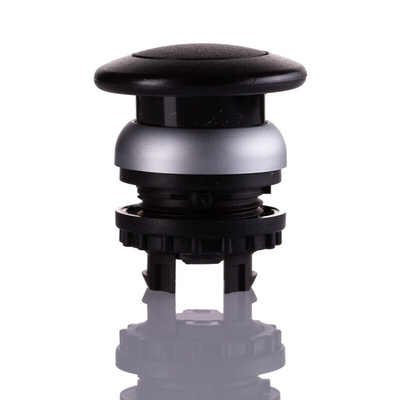

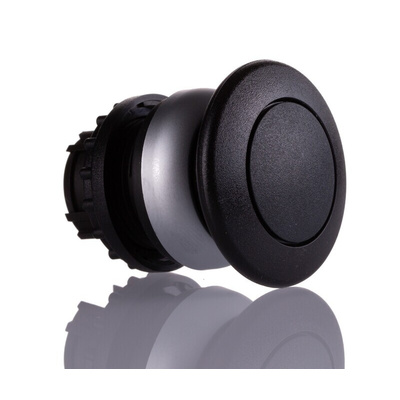

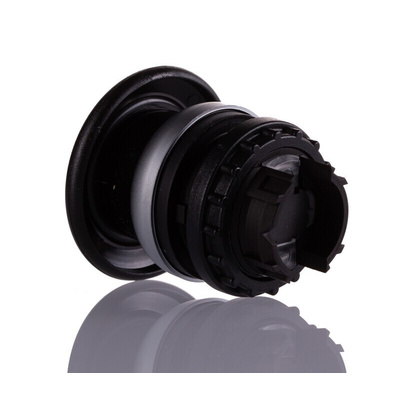

216712 M22-DP-S, Eaton RMQ Titan M22 Series Black Momentary Push Button Head, 22mm Cutout, IP67

Eaton RMQ Titan Push Button Head, Momentary Actuation, IP67 Rating - RMQ-Titan / M22 Series - 216712 M22-DP-S

Manually control circuits in your industrial machinery with this push button head from Eaton. As it's momentarily actuated using a spring-return mechanism, the device returns to its constant state once you stop pressing on it. This makes it an ideal choice for temporary machine processes. A plastic bezel resists corrosion and impact, so you can rely on the unit for long-term performance. It has a flat design that prevents accidental actuation for enhanced workplace safety. You'll commonly find button heads like this installed in alarm systems and automation equipment.

Features & Benefits

• Mushroom shape for comfortable operation with the palm of your hand
• Can withstand up to 30g of impact for high shock resistance
• IP67 rating indicates it’s dustproof and resistant to immersion in 1m of water for 30 minutes
• Wide operating temperature between -25°C and +70°C for use in demanding conditions

How long can I expect this push button head to last?

This push button head has a mechanical lifespan of up to 5,000,000 cycles, so you can be sure of long-term use.

Where can I mount this device?

This button head mounts through a 22mm cutout on a control panel and can be fixed in any position, for versatility.

Note

Eaton formerly known as Moeller

Datasheet

Datasheet

Datasheet

Instruction Sheet - RMQ Titan M22
