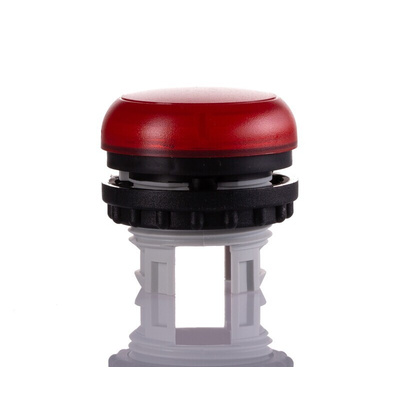

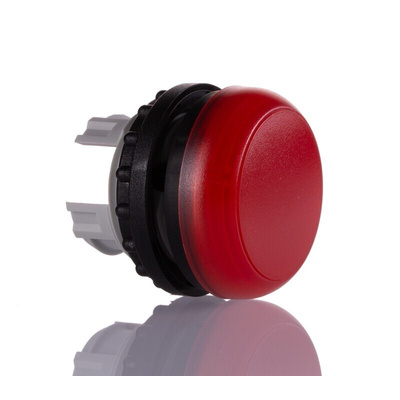

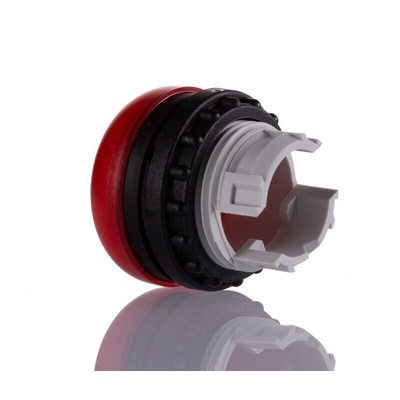

216772 M22-L-R, Eaton Red Pilot Light Head, 22.5mm Cutout M22 Series

Eaton Pilot Light Head, Flush Mounting Type, Red - M22 Series - 216772 M22-L-R

When you need a clear visual indication of a workplace hazard, choose this red pilot light head from Eaton. It's ideal for use in commercial and industrial control stations or on a factory production line. For an ergonomic fit, the unit is mounted flush with the panel, while a standard 22.5mm cutout diameter means it's widely compatible with existing equipment for easy installation. This pilot light head uses Eaton's SmartWire-DT system, so it's quick and easy to install. Because SmartWire-DT eliminates error-prone point-to-point wiring, you can be sure of a reliable connection.

Features & Benefits

• IP69K rating indicates this product is fully waterproof against high-pressure jets from all directions and immersion in depths of up to 1m
• Shock resistance of up to 30g means it's suitable for high-vibration applications
• Operating temperature range of -25°C to +70°C for use in challenging environments

How do I know which colour indicator light to use?

Generally, you'd use a red indicator light like this one to draw attention to an immediate danger or a deviation that needs urgent attention. A yellow indicator light warns of potential threats before they become a problem. Green shows that the system is functioning normally or ready to begin operation.

Note

Eaton formerly known as Moeller
