Gemalto Cinterion USB Terminal Development Kit EHS6T-USB PACK A

EHS6T Terminals Starter Kits, Gemalto

The EHS6T-USB Terminal Starter Kits are available in two varieties;

-EHS6T-USB PACK A: Contains a stubby antenna (847-6925)
-EHS6T-USB PACK B: Contains a mag mount antenna (847-6929)

The Cinterion® EHS6T-USB 3G M2M plug and play terminal is ideal for any designer that is looking for speed, security, flexibility and cost-effectiveness in the development of their IoT (Internet of Things) applications.

With the inclusion of embedded Java, M2M modules and embedded MIMs (Machine Identification Modules), designers have access to the cloud based Sensor-Logic application enablement platform which enables rapid communication, high code reusability and reduces the need for any extra components.

There is also a variety of mounting options available that include DIN rail mounting, screw fixing, C-rail mounting and cable ties.

The EHS6T-USB terminal is designed for use in the development of industrial applications such as metering, security, remote monitoring and transportation

EHS6T USB TERMINAL FEATURES:
Compact enclosure
Embedded Java
SIM application toolkit
Variety of mounting options
Five band 3G HSPA (High Speed Packet Access)
USB 2.0 compatible
Embedded TCP/IP stack
Ethernet interface
FOTA configurable
Programmable hardware watchdog
SMS text and PDU mode support
Quad Band GPRS/EDGE Class 12
Advanced Temperature Management
RLS Monitoring
Supply Voltage Range : 8 V to 30 V
Dimensions : 115 mm x 86 mm x 26 mm
Operating Temperature : -30°C to +65°C

Note

Modem is available separately: 847-6922

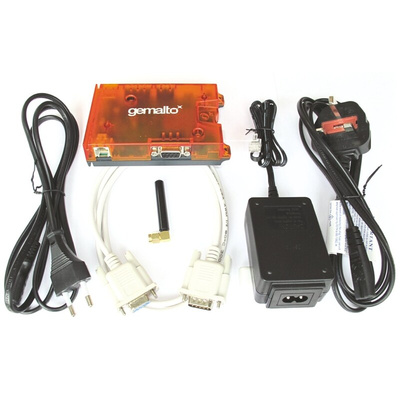

Supplied with

CD-ROM, antenna, data cable, EU/UK PSU
