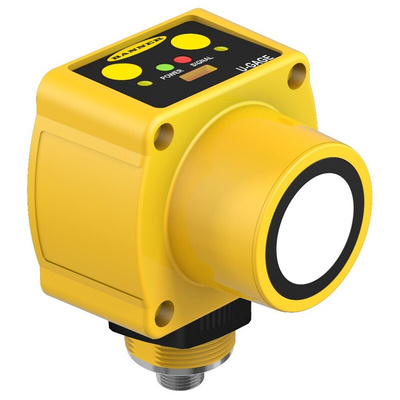

QT50ULBQ6, Banner QT50ULB Series Ultrasonic Block-Style Proximity Sensor, M12 x 1, 200 → 8000 mm Detection, Analogue, Датчик

8479637
Номер производителя: QT50ULBQ6Производитель: Banner
Цена за шт.
379629.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

QT50U Series Long Range Ultrasonic Sensor

The QT50U series has been designed as a long range, programmable, ultrasonic sensor. It is suitable for use on both AC and DC circuits and is equipped with an electromechanical relay output. It comes enclosed in a shock-resistant housing, is completely sealed and is ideal for monitoring levels of liquids as well as solids.

Features:
Features universal supply voltage: 85 to 264 Vac (50/60 Hz) or 48 to 250 Vdc
Offers SPDT electromechanical relay output for setting independent near and far window limits, for applications requiring high and low-limit sensing
Available with pump-in and pump-out fill-level control on some models
Senses extended range of up to 8 m
Features ultrasonic dead-zone of only 2.5% of the total range—75% less than comparable product
Available in chemically resistant models with a Teflon coating to protect the transducer
Compensates for temperature, for greatest sensing accuracy
Simplifies setup with push-button and remote TEACH-mode programming
Shows status during setup and operation, using highly visible LEDs indicators

Banner Proximity Sensor, ABS/Polycarbonate Housing, 100 to 2300ms Output Response Time - QT50U Series - QT50ULBQ6

Keep ripples in your industrial workflow at bay using this proximity sensor from Banner. Its ultrasonic function produces a high-frequency sound wave that bounces off an object in its sensing radius. With a 200 to 8000mm detection range, it measures across long distances and at high speeds. You can rely on the unit to monitor liquids as well as solids, so it's a versatile watchman. Thanks to the front-facing push button and TEACH-mode programming, you can swiftly configure and adjust its operating conditions. The ABS/polycarbonate housing resists chemicals, making this a durable choice for use in demanding settings.

Features & Benefits

• LED indicators enable hassle-free status monitoring
• Output response time of 100 to 2300ms for rapid measurements
• Temperature compensation range of 0.02% of distance/°C for reliable accuracy

Applications

• Mining and quarrying industry
• Construction sites
• Bottling plants
• Printing presses

What protective features does this sensor have?

This sensor comes with combined protection against short circuits, overcurrent and reverse polarity conditions, so it's well-defended against faults.

Does this device withstand vibration?

Yes, this sensor can withstand mechanical shock and vibration, so it's for safe use in challenging operations.

Техническая спецификация
pdfDatasheet
pdfLine Drawing - QT50ULBQ6
Вид корпуса:
Block
Встречающиеся стандарты:
CE
Глубина:
67.4мм
Диапазон обнаружения:
200 → 8000 мм
Длина:
74мм
Защита от короткого перегрузочного замыкания:
Да
Защита от обратной полярности:
Да
Коммутируемый ток:
20 мА
Максимальное напряжение постоянного тока:
30В
Материал корпуса:
ABS, Поликарбонат
Напряжение питания:
10 → 30 В пост. тока
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-20°C
Размер резьбы:
M12 x 1
Серия:
QT50ULB
Степень защиты IP:
IP67
Технология датчика:
Ultrasonic
Тип выхода:
Аналоговый
Тип клеммы:
5-Pin M12 Разъем
Частота переключений:
75 кГц
Ширина:
100.2мм
