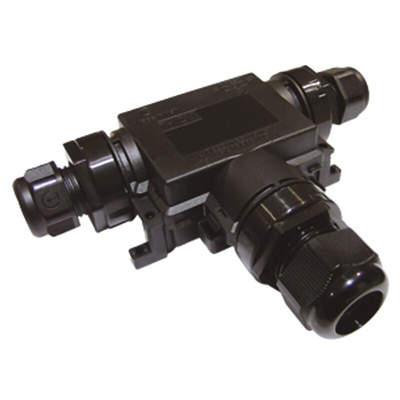

THA.211.A1A3PT, Techno TH211 Nylon 66 Terminal Block Housing, Cable Mount, Корпус

TeeBox Distribution Boxes

Hylec TeeBox junction boxes feature a versatile weather proof terminal block connection option within an enclosure which has a protection rating up to IP68. These wateproof / weatherproof enclosed connectors feature an internal screw terminal block (see Note). The screw terminal makes these waterproof / weatherproof connectors much easier to wire up, connect and quick to put into reliable service.

The available options are below:
848-1448: TeeBox 7mm to 14mm cable, max. IP68 rated, screw fixing, 4 cable entries 16A - THA_209_A1A
848-1457: TeeBox 8mm to 17mm cable, max. IP65 rated, screw fixing, 3 cable entries - THA_211_A1A (see Note)

High maximum current ratings
Integral screw terminal block
Protection rating up to IP68 (848-1448) and IP65 (848-1457)
Temperature range: -20°C to +125°C
Body material: PA66/ SEBS / TPE

Note

848-1457: (TeeBox 8mm to 17mm cable, max. IP65 rated, screw fixing, 3 cable entries - THA_211_A1A) is supplied as a kit containing a 3 pole 32A terminal block THB.029.A1A.

Hylec weather Proof / Waterproof Terminal Block Housings

The Hylec Tee Family range of connectors, plugs and junction boxes allows installers to make quick connections, which are ingress protected to IP68. With a number of sizes and entry options, the range is proving ideal for many applications where connections need to be protected from harsh and wet environments.

The fully approved all-weather TeeBox and TeePlug range offers IP68 protection with up to 8 pole connection options (depending on product) and includes cable connectors, plug and socket connectors and junction boxes; the Tee products use dome topped cable glands to provide very quick and secure connections without the need for specialised tools.

The Tee Family is suitable for many applications in a number of outdoor and industrial environments. Suitable applications include fans, pumps, air conditioning, refrigeration equipment and LV power distribution for commercial and domestic premises.

The TeePlug has been used to provide connections for the lighting system at the Singapore Grand Prix, Formula 1’s first night time race. Here the quick and reliable connections were put under extreme pressure as Singapore is known for its frequent and heavy rainfall. The TeeBox has also been used to protect connections and LED drivers in one of the world’s longest shopping centres and in many high profile maritime applications.
