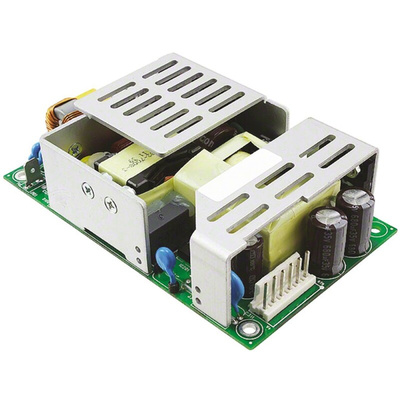

SL POWER CONDOR Switching Power Supply, CINT1200A1275K01, 12V dc, 16.7A, 180W, 1 Output, 90 → 264V ac Input, Источник питания

Switch Mode, Single Output, Industrial Power Supply, CINT1200 Series

The SL Power Electronics CINT1200 family is a series of high density, single output, open-frame AC/DC power supplies. These switch mode power supplies measure only 3 X 5 inches and less than 1U high, the CINT1200 provides 200W with 90% efficiency at 240Vac and 180W under convection. The CINT1200 power supplies operate at universal input range of 90 to 264Vac and wide temperature range -10°C to +70°C, delivering full rated output power up to +50°C. The CINT1200 models come with standard outputs ranging from 12 to 48V. The power supplies also feature Power Fail and DC OK signals. Approved to CSA/EN/IEC/UL60950-1, 2nd edition, the CINT1200 power supplies are ideal for industrial and ITE and many other applications where power density and cost are critical.

3 x 5 x 1.3 inches package
Fits 1U Applications
200W with 100LFM air
180W convection cooled
Class B conducted EMI
Universal Input 90-264 Vac
Efficiency 90% typical
RoHS Compliant

Standards

CSA/EN/IEC/UL60950, 2nd Edition

Switch Mode - SL Power

CINT1200 200W Single Output Industrial Series Data Sheet
