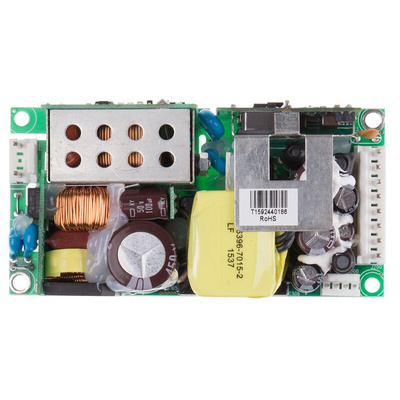

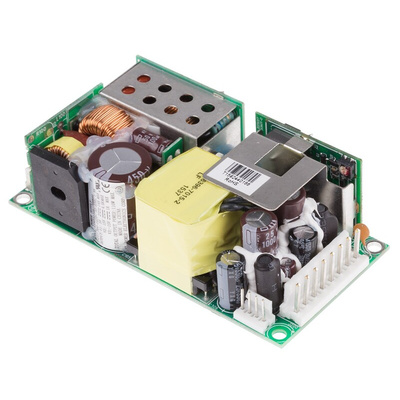

SL POWER CONDOR Switching Power Supply, CINT3110A1708K01, 5 V dc, ±15 V dc, 14.0A, 80W, 1 Output, 90 → 264V ac, Источник питания

Switch Mode, Triple Output, Industrial Power Supply, CINT3110 Series

The SL Power Electronics CINT3110 family is a series of high density, triple output, open-frame AC/DC power supplies. These switch mode power supplies measure only 2 X 4 inches and less than 1U high, the CINT3110 provides 110W with 90% efficiency at 240Vac and 80W under convection. The CINT3110 power supplies operate at universal input range of 90 to 264Vac and wide temperature range -10°C to +70°C, delivering full rated output power up to +50°C. The CINT3110 models provide three outputs, featuring a 5V main output and various combinations of auxiliary outputs (+/-12V, +/-15V, +/-24V). The power supplies also feature Power Fail and DC OK signals. Approved to CSA/EN/IEC/UL60950-1, 2nd edition, the CINT3110 power supplies are ideal for test & measurement, diagnostic, process control and other Industrial applications, the CINT3110 series triple output power supplies provide a highly reliable and energy efficient power solution in a small form factor at an affordable cost.

2 x 4 x 1.3 inches package
Suitable for 1U Applications
110W with air, 80W convection cooled
Universal Input 90-264Vac
Efficiency 87% typical
Approved to CSA/EN/IEC/UL60950-1, 2nd Edition
Power Fail Signal
Remote Sense
RoHS Compliant

Standards

CSA/EN/IEC/UL60950, 2nd Edition

Switch Mode - SL Power

CINT3110 110W Triple Output Industrial Series Data Sheet
