SL POWER CONDOR Switching Power Supply, GLC65EG, 5 V dc, 12 V dc, 24 V dc, 60W, Triple Output, 90 → 264V ac, Источник питания

Switch Mode, Multiple Output, Commercial Power Supply, GLC65 Series

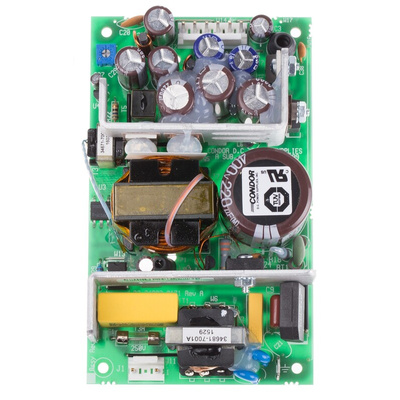

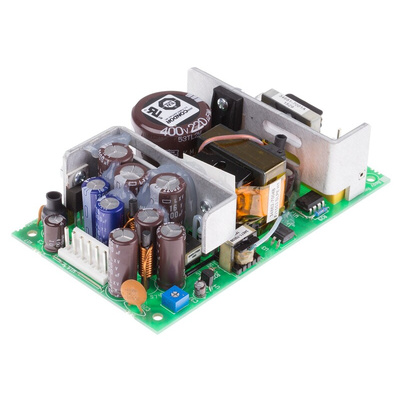

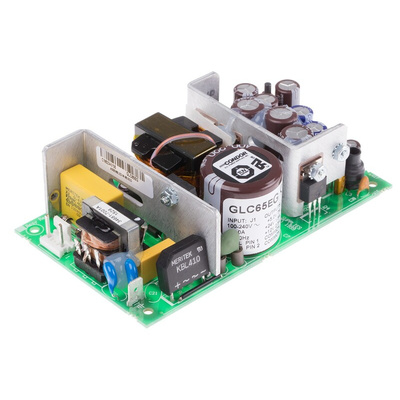

The SL Power Electronics GLC65 family is a series of multiple output, open-frame AC/DC power supplies. These switch mode power supplies come in a compact size of 3 x 5.0 x 1.20 inches, the GLC65 provides 65W with up to 90% efficiency. The GLC65 power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit and output overload. The GLC65 series of switching power supplies are ideal for commercial applications.

65 Watt Wide Range Input
Compact 3.0 x 5.0 x 1.20 inches
High efficiency (up to 90%)
Meets harmonic requirements of IEC1000-3-2, Class A
Conducted EMI complies with FCC Class B and CISPR 22 Class B
Exempt from line harmonics standard EN61000-3-2
Multiple outputs
RoHS compliant
CE marked to LVD

Standards

UL1950, CSA22.2 No. 950, IEC950 and EN60950

Approvals

UL, CSA, IEC, EN, CE

Switch Mode - SL Power

GLC65 Commercial/GLM65 Medical Data Sheet
