SL POWER CONDOR Switching Power Supply, GLC75CG, 5.1V dc, 75W, Quad Output, 90 → 264V ac Input Voltage, Источник питания

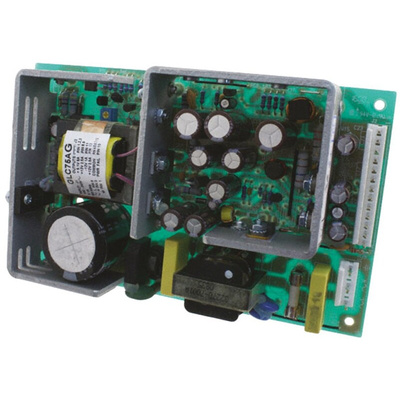

SL POWER CONDOR Switch Mode Power Supply

The SL POWER CONDOR GLC75 series 75W quad outputs AC/DC power supply has an output current rating of 8A at 5.1VDC, 2.5A at 12VDC, 1A at-15VDC, and 2.5A at 15VDC. It has a universal input supply voltage rating from 90VAC to 264VAC. The power supply is fully protected against short circuit and output overload. This switch power supply is ideal for commercial applications. It provides 75W for unrestricted natural convection cooling or 110W with 26cfm airflow.

Features and Benefits

Open frame
Measures 7in x 4.25in x 1.30in (meets 1U height)
High efficiency up to 78%
Multiple outputs
Cost-effective multiple-output power source

Certifications

UL1950 3rd edition
CSA22.2 No. 950
EN60950-1
UL approved
CSA approved
EN approved
EN61000-3-2 class A
FCC class B
CISPR 22 class B

GLC75 Commercial/GLM75 Medical 75 Watt Multiple Output Data Sheet
