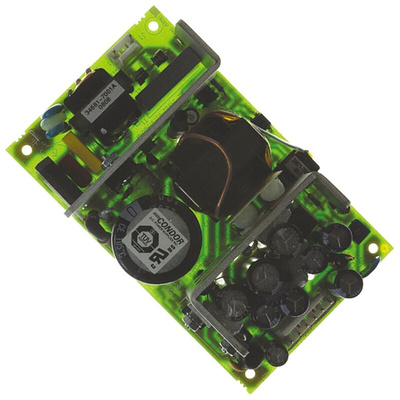

GLM65BG, SL POWER CONDOR, 60W Embedded Switch Mode Power Supply SMPS, 5.1 V dc, ±15 V dc, Open Frame, Источник питания

Switch Mode, Multiple Outputs, Medical Power Supply, GLM65 Series

The SL Power Electronics GLM65 family is a series of multiple outputs, open-frame AC/DC power supplies. These switch mode power supplies come in a compact size of 3 x 5.0 x 1.06 inches, the GLM65 provides 65W with up to 90% efficiency. The GLM65 power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit and output overload. The GLM65 series of switching power supplies are ideal for medical applications.

65 Watt Wide Range Input
High Efficiency up to 90%
Universal input 90-264 Vac
2-year warranty
Also available in single outputs
Conducted EMI complies with FCC Class B and CISPR 11 Class B
Exempt from line harmonics standard EN61000-3-2
RoHS Compliant (G suffix)
CE marked to LVD

Standards

UL2601-1, CSA 22.2 No. 601.1, and EN60601-1

Approvals

UL, CSA, EN

Switch Mode - SL Power

GLC65 Commercial/GLM65 Medical Data Sheet
