SL POWER CONDOR Switching Power Supply, GNT424ABG, 24V dc, 300W, 1 Output, 100 → 240V ac Input Voltage, Источник питания

Switch Mode, Single Output, Front End Power Supply, GNT400 Series

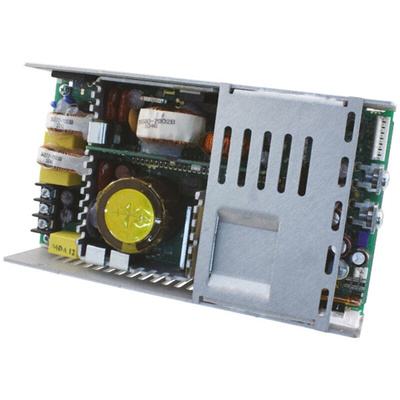

The SL Power Electronics GNT400 family is a series of medical and industrial, open-frame AC/DC power supplies. These switch mode power supplies come in a compact size of 4 x 7 x 1. 5 inches, the GNT400 provides 400W continuous with 200 LFM airflow, with up to 91% efficiency. The GNT400 power supplies operate at wide input range of 100 to 240Vac with active PFC. The GNT400 series of switching power supplies are ideal for medical and industrial applications.

Compact size U Channel (1U compatible)
100-240 VAC Input with Active PFC
12 to 48 V DC Output at 400W (300W convection rating)
5 Vdc, 100 mA Standby Output
12 Vdc Fan Output
Less than 100μA leakage
Compliance to EN55011/22 Conducted Noise, Class B
RoHS Compliant – Category 6

Standards

ITE Safety Standards CSA/EN/IEC/UL 60950-1
Medical Safety Standards EN/IEC/UL 60601-1, CSA22.2 No. 601-1

Approvals

UL, CSA, EN and IEC

Switch Mode - SL Power

GNT400 Front End Series 400W AC/DC Data Sheet
