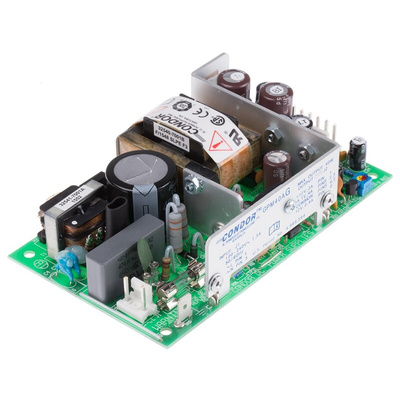

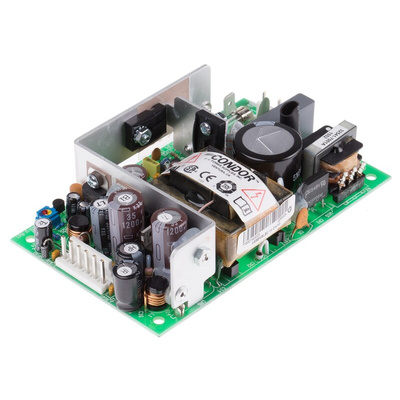

SL POWER CONDOR Switching Power Supply, GPM40AG, 5.1 V dc, ±12 V dc, 40W, Triple Output, 85 → 264V ac Input, Источник питания

SL POWER CONDOR Switch Mode Power Supply

The SL POWER CONDOR GPM40 series 40W triple outputs AC/DC embedded power supply has an output current rating of 4A at 5.1VDC, 2A at 12VDC, and 0.4A at -12VDC. It has a universal input supply voltage rating from 85VAC to 264VAC. The power supply is fully protected against short circuit and output overload. This switch power supply is ideal for medical applications.

Features and Benefits

Open frame
Measures 2.56in x 5in x 1.28in
High efficiency up to 70%
Single and multiple outputs

Certifications

UL1950 3rd edition
CSA22.2 No. 950
EN60950-1
UL approved
CSA approved
EN approved
EN61000-3-2 class A
FCC Class B
CISPR 22 class B

GPC40 Commercial/GPM40 Medical 40 W Data Sheet
