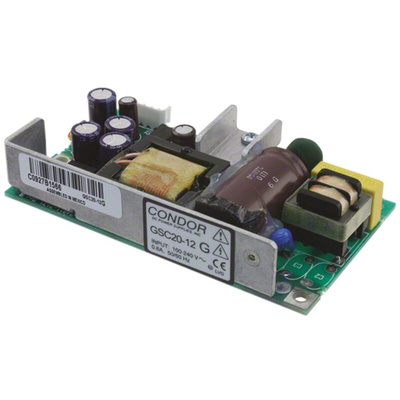

SL POWER CONDOR Switching Power Supply, GSC20-12G, 12V dc, 20W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

Switch Mode, Single Output, Commercial Power Supply, GSC20 Series

The SL Power Electronics GSC20 family is a series of single output, industrial open-frame AC/DC power supplies. These switch mode power supplies come in a very small size of 2 x 3.5 x 0.71 inches, the GSC20 provides 20W continuous, or 24W peak for a maximum duration of 60 seconds, with up to 70% efficiency. The GSC20 power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit and output overload. The GSC20 series of switching power supplies are ideal for commercial applications.

Industry’s smallest 20W switcher
Business-card size
EMI FCC Class B, CISPR22B
Overvoltage protection standard
RoHS compliant models available (G suffix)
CE marked to LVD

Standards

UL60950, CSA-C22.2 No. 60950, EN60950, IEC60950 with CB Certificate

Approvals

UL, CSA, EN, IEC

Switch Mode - SL Power

GSC20 Commercial 20 Watt Data Sheet
