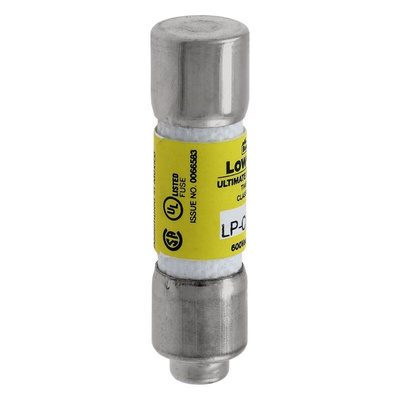

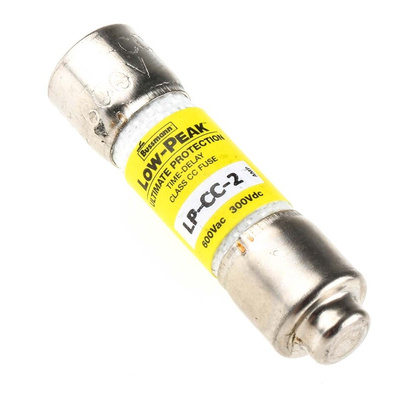

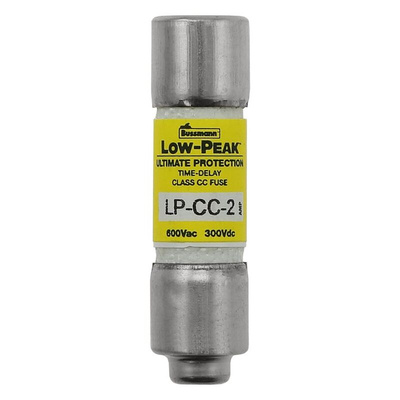

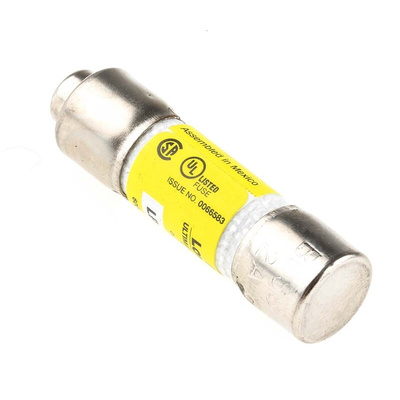

LP-CC-2, Eaton 2A T Melamine Cartridge Fuse, 10 x 38mm, Предохранитель

Eaton Cartridge Fuse, 200kA Interrupting Capacity, 600V AC / 300V DC Rating - Low-PeakSeries - LP-CC-2

Count on this cartridge fuse from Eaton to put the brakes on a short circuit. Its dual-element design means you get current limitation, speedy short-circuit protection and time-delay performance in one compact package. This lets you cut down on inventory and waste, while also reducing the risk of fuse-replacement errors. Thanks to this fuse's superior current limitation, it helps to keep work areas safe by minimising the chance of arc-flash hazards. It's quick to have a meltdown when too much current runs through it, protecting equipment from breakdowns caused by overload. Choose a product like this one to safeguard downstream industrial components, such as low-horsepower circuits and motor controllers, from power faults.

Features & Benefits

• No calibration necessary, meaning less need for maintenance
• Time delay function reduces the risk of unwanted fuse openings for efficiency
• Interrupting rating of 200kA meets NEC® Section 110.9 requirements for short-circuit current ratings, making it compatible with large-capacity systems

How big is this fuse?

The product has a compact size of 38.1mm (length) x 10.3mm (diameter). This means it needs minimal mounting space in tight setups.

Note

Eaton formerly known as Bussmann

Datasheet

Transition to Bussmann Series

Catalogue - Bussmann series
