SL POWER CONDOR Switching Power Supply, GSM11-12AAG, 12V dc, 11W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

Switch Mode, Single Output, Medical Power Supply, GSM11 Series

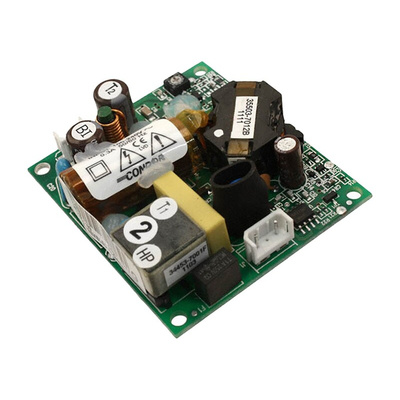

The SL Power Electronics, Condor GSM11 family is a series of single output, universal input, open-frame AC/DC power supplies. These switch mode, low power, medical power supplies come in an industry leading small footprint, the GSM11 provides 11W with up to 77% efficiency. The GSM11 power supplies operate at universal input range of 85 to 264Vac. The power supplies are fully protected against short circuit and output overload. The GSM11 series of switching power supplies are ideal for a variety of medical device applications including small single board computers, battery charging, and running small motors, pumps, and solenoids.

85 - 264 Vac input range (100 - 240 Vac nominal)
Overvoltage and short circuit protection
Approved to UL, CSA and EN Standards
Class II input
RoHS Compliant

Standards

UL/EN/IEC 60601-1 CSA22.2 No.601
UL/EN/IEC 60950-1 CSA22.2 No.60950-1

Approvals

UL, EN, IEC, CSA

Switch Mode - SL Power

Datasheet
