85508-5001, Molex 85508 Series Female RJ45 Connector, Through Hole, Cat5e, Разъем

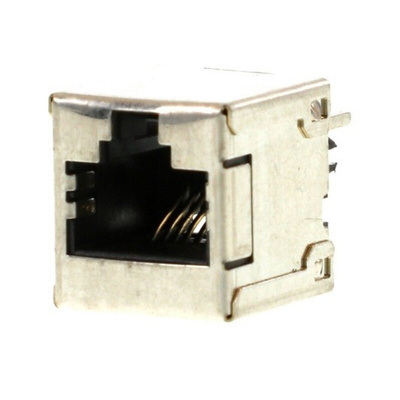

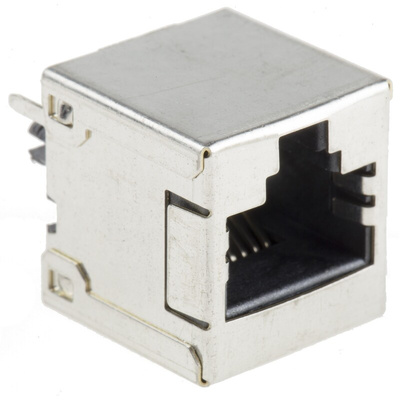

Molex Modular Jack, Cat5e, RJ45 - 85508 Series - 85508-5001

This modular jack from Molex is an effective choice for secure interfacing with telecommunications systems. It's an industry-standard RJ45 (registered jack) connector that provides fast data transmissions. A strong and durable thermoplastic housing means it can stand up to demanding industrial conditions, while contacts plated in gold over palladium nickel provide a strong and reliable connection. Shielding from EMI (electromagnetic interference) ensures steady transfer rates and lowers the risk of unauthorised access to sensitive data, improving system security.

• Flame retardant housing enhances worksite safety
• Cat5e LAN (local area network) means it can handle up to a gigabit of data per second for faster transmissions
• Wide operating temperature range of -40°C to +85°C means it'll work effectively in harsh environments
• Standard 8P8C (8 pins 8 contacts) configuration for fast and reliable joins

Applications

• Consumer and data communications
• Industrial processing
• Medical industry

Where can this jack be mounted?

Mount this jack onto PCBs (printed circuit boards) using through-hole mounting, then connect the plug through the top entry for fast and easy joins. You also have the option of reflow soldering it.

Vertical Shielded Cat 5e RJ45 Modular Jack

Application Sheet - 85508-5001

Brochure - Modular Jacks

Datasheet - 85508-5001

Product Specification Sheet - 85508-5001
