MQDC1-515, Banner Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

MQDC Series

The MQDC Series of cordsets and cable connectors from Turck Banner.

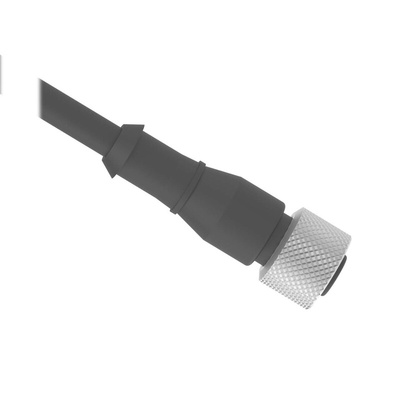

Banner Sensor Actuator Cable, PVC Sheath, Single-Ended Type - MQDC Series - MQDC1-515

Searching for a dependable way to transfer data from your sensor equipment? Reach for this sensor actuator cable from Banner. It's fitted at one end with a straight female M12 connector featuring five pin contacts, so you can use it to communicate across your network. This piece of kit is five metres long, giving plenty of scope for your setups. Connections stay secure during use thanks to a watertight coupling nut, made from corrosion-resistant nickel-plated brass for a longer product life.

Features & Benefits

• 250V AC/DC voltage rating stands up to high-voltage installations
• 22AWG wire size with a cross-sectional area of 0.34mm² fits easily into tight spaces
• Performs reliably in a broad operating temperature range between -40°C and +70°C
• IP67 rating means it's protected from dust and safe to use in 1m of water for up to 30 minutes

Applications

• Commercial electronics
• Process controls
• Telecommunications

How hard-wearing is this cable?

A PVC jacket makes the cable durable and resistant to abrasion and wear in tough environments.

Is this connector unterminated at the other end?

Yes, one end of the cable is unterminated with an open design that lets you terminate it to suit your sensor equipment.

Cordset & Cable Connector Female

New product line from Turck Banner, eurofast®, picofast®, pentafast® and microfast® cordsets.
These industrial connectivity products are available as angled or straight configuration with choices of M5, M8, M12, M16, M23 or 1/2" 20 UNF connection.
A combination of female, male, female to male and male to female gender plus various cable lengths ensure the user can select the right cordset for their application.

Datasheet

Line Drawing - MQDC1-515
