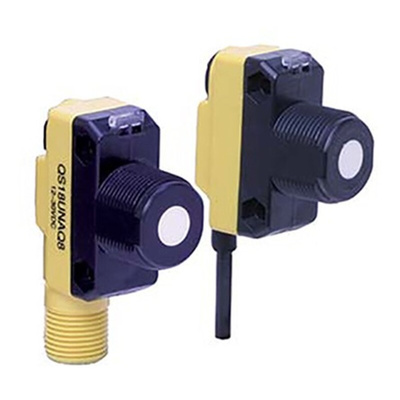

QS18UNA, Banner Ultrasonic Block-Style Proximity Sensor, 50 → 500 mm Detection, NPN Output, 12 → 30 V dc, IP67, Датчик

Turck Banner World Beam Ultrasonic Proximity Sensor

World Beam series of ultrasonic proximity sensors provide the user with an ultra-compact housed option where space is an important parameter within an installation. Quick & simple installation thanks to the easy to use TEACH mode programming mode, eliminating the need for potentiometer adjustment

Fast response time rated at 15 milliseconds
Can be configured for use on both NO & NC operation
Discrete NPN or PNP output depending on the selected model
LED status indication
Wide operating temperature range of -20°C to 60°C with temperature compensation
Compact housing accompanied with an optional encapsulated option for harsher environments
Various termination methods available to ensure your application is covered, including an unterminated lead, 4 pin, Euro & Pico connections

Note

Not to be used for personal protection

World Beam

Datasheet
